Handrail Connector Description

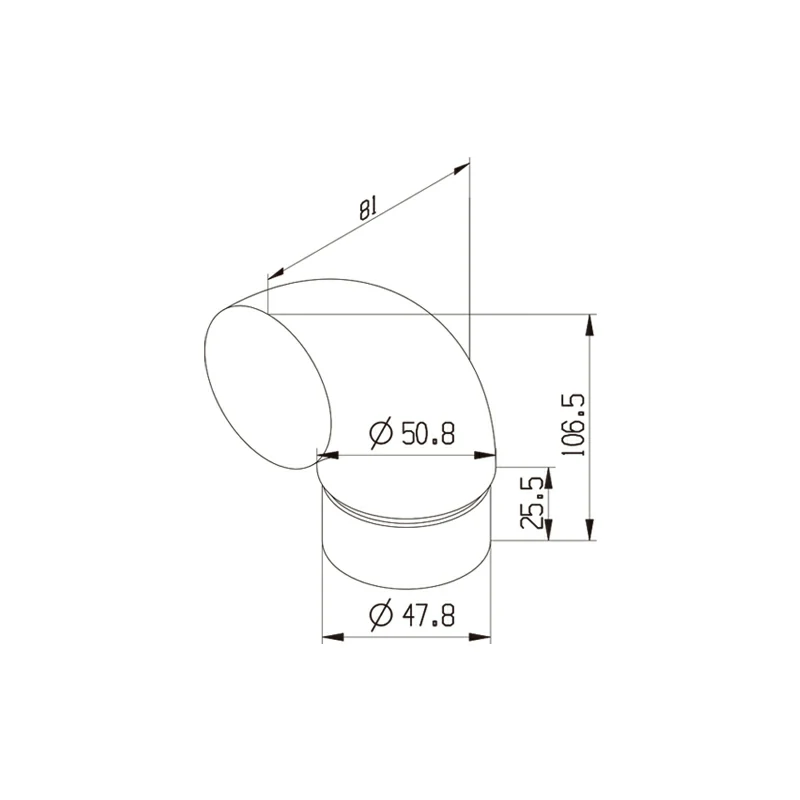

This handrail connector is used to link handrails to columns to support the entire handrail system, ensuring the stability and safety of the entire structure. Stainless steel handrail end cap is a component used to finish off the end of a handrail, providing a clean and polished look while also offering protection to the end of the handrail. It is typically made of stainless steel, which provides durability and resistance to corrosion. The end cap is designed to fit securely onto the end of the handrail, often using a set screw or another fastening method. In addition to its functional purpose, a stainless steel handrail end cap can also contribute to the aesthetic appeal of a handrail, making it a popular choice for both residential and commercial applications.
Handrail Connector Specifications
|
Product Name |
Handrail Post Connectors |
|
Coupling |
50.8mm*1.5mm |
|
Weight |
0.423Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Suitable for all kinds of indoor and outdoor handrails and balustrades, etc |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
The design of these connectors may vary from use to use and is suitable for different types of handrail systems. Ensure that the connectors comply with applicable building and safety codes to meet relevant standards and regulations. Know the load-bearing capacity of the connectors to ensure that they are adequate to support the load of the handrail at the corner to prevent accidents.
