Square Wall Mount Bracket

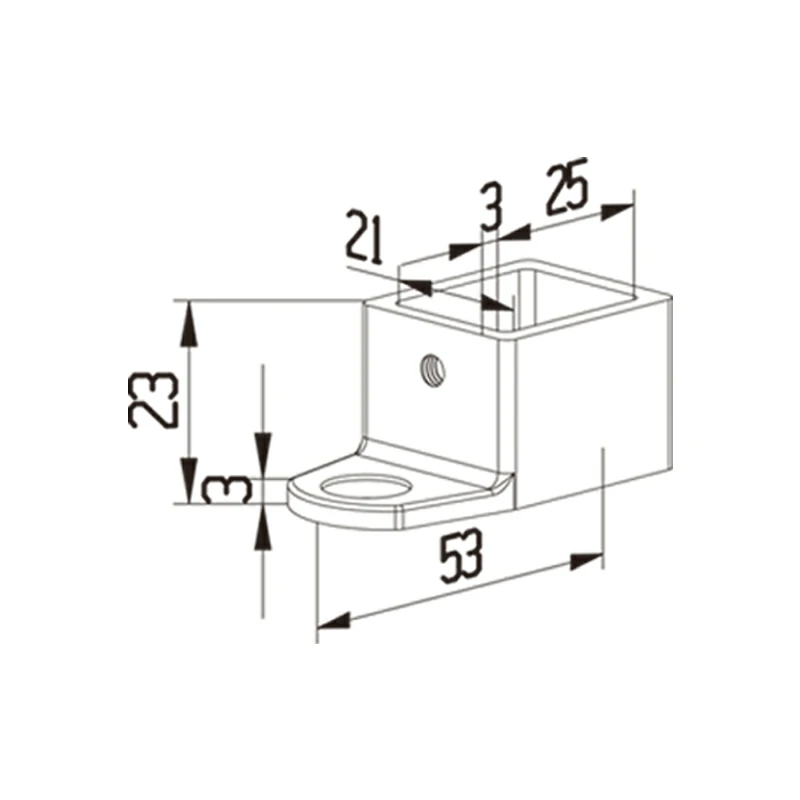

Square Wall Mount Bracket Structure
Square Wall Mount Bracket Square Wall Mount Bracket Structure

Handrail Wall Bracket

Part No. LS-WB-S25S

Coupling: 21mm*25mm
Weight 0.09Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Bracket Description

Stainless Steel Square Wall Mount Bracket for handrail is a compact and stylish bracket designed to support handrails while taking up minimal space. Despite their smaller size, the square wall mount bracket is designed to provide reliable support for handrails attached to walls. They are engineered to securely hold the handrail in place and ensure stability for users.



Handrail Bracket Specifications

Product Name

Handrail Against The Wall Connector

Coupling

21mm*25mm

Weight

0.09Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

The compact size of these handrail brackets makes them ideal for installations where space is limited or where a more discreet mounting option is desired. They provide structural support without protruding too far from the wall, helping to maintain a clean and unobtrusive appearance.

Installing this Wall Mount Bracket involves securely mounting the bracket to the wall using appropriate screws or fasteners. The handrail is then attached to the bracket, creating a strong and stable connection.

Ensure that the handrail brackets have sufficient strength and durability to withstand the stresses on the handrail and the weight under the conditions of use.
