Round Wall Bracket

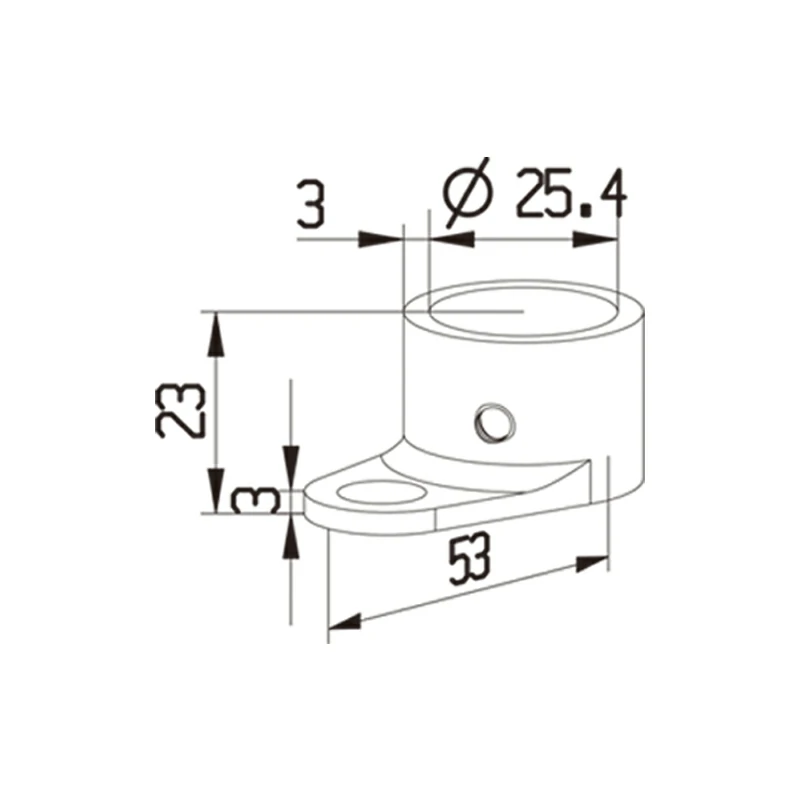

Round Wall Bracket Structure
Round Wall Bracket Round Wall Bracket Structure

Handrail Wall Bracket

Part No. LS-NTR-RW

Coupling: ∅25.4mm
Weight 0.08Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Bracket Description

Stainless Steel mini Round Wall Bracket for handrail is a type of wall bracket designed to support handrails on walls in a compact and stylish manner. The primary function of these brackets is to provide a stable and secure mounting point for handrails on walls.

These round wall brackets are chosen not only for their functionality but also for their aesthetic appeal. The sleek stainless steel finish and compact design add a modern and minimalist look to the handrail installation.



Handrail Bracket Specifications

Product Name

Handrail Against The Wall Connector

Coupling

∅25.4mm

Weight

0.08Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

The compact size of these handrail brackets makes them ideal for installations where space is limited or where a more discreet mounting option is desired. They provide structural support without protruding too much from the wall.

Installing a Stainless Steel Mini Round Wall Bracket for a handrail involves securely mounting the bracket to the wall using appropriate screws or fasteners. The handrail is then attached to the bracket, providing a secure and stable support system.
