Home Glass Railing Brackets Handrail Wall Bracket
Square Shower Wall Bracket

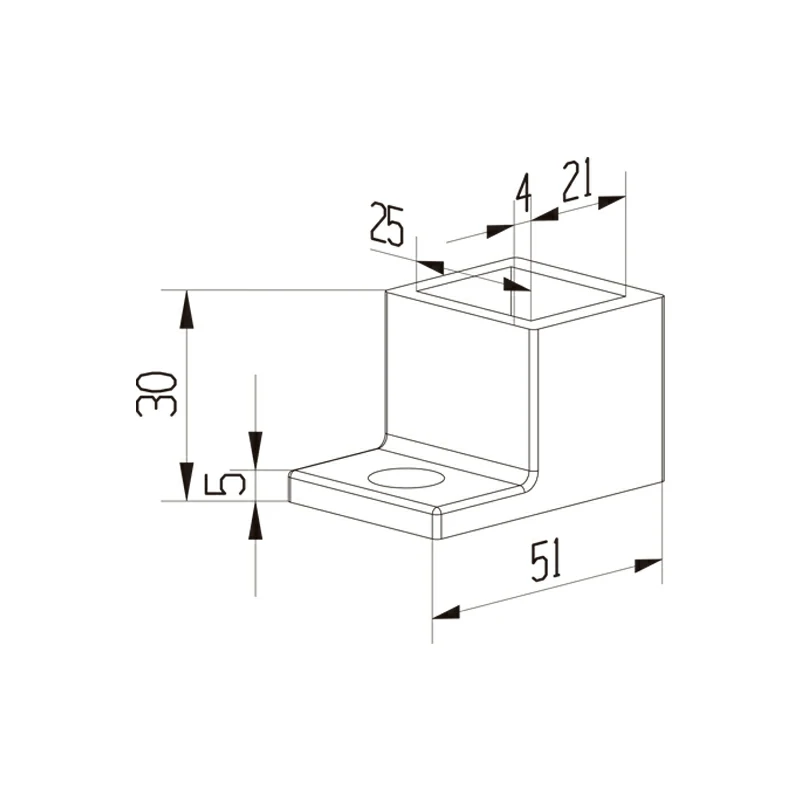

Square Shower Wall Bracket Structure
Square Shower Wall Bracket Square Shower Wall Bracket Structure

Handrail Wall Bracket

Part No. LS-2502

Coupling: 21mm*25mm
Weight 0.12Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Bracket Description

Square handrail wall bracket is compact and takes up less space on the wall while still providing adequate support for the handrail. These handrail brackets offer the same durability, corrosion resistance, and support as standard brackets while being well-suited for smaller shower areas or where a minimalist design aesthetic is desired.

The primary function of the square shower handrail wall bracket is to securely attach the handrail to the wall in a shower area. The square shape bracket ensures that the handrail is firmly mounted and provides users with the necessary support and stability. The handrail bracket is made of stainless steel, which is known for its strength, resistance to moisture, and corrosion resistance.



Handrail Bracket Specifications

Product Name

Handrail Against The Wall Connector

Coupling

21mm*25mm

Weight

0.12Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Square shower wall bracket is mounted on the wall using screws or other appropriate fasteners. Its smaller size makes it suitable for compact spaces or areas where a more discreet mounting solution is desired. It is important to ensure that the bracket is securely attached to a structurally sound part of the wall to provide reliable support.

Ensure that these handrail wall brackets have sufficient strength and durability to withstand the stresses on the handrail and the weight under the conditions of use.
