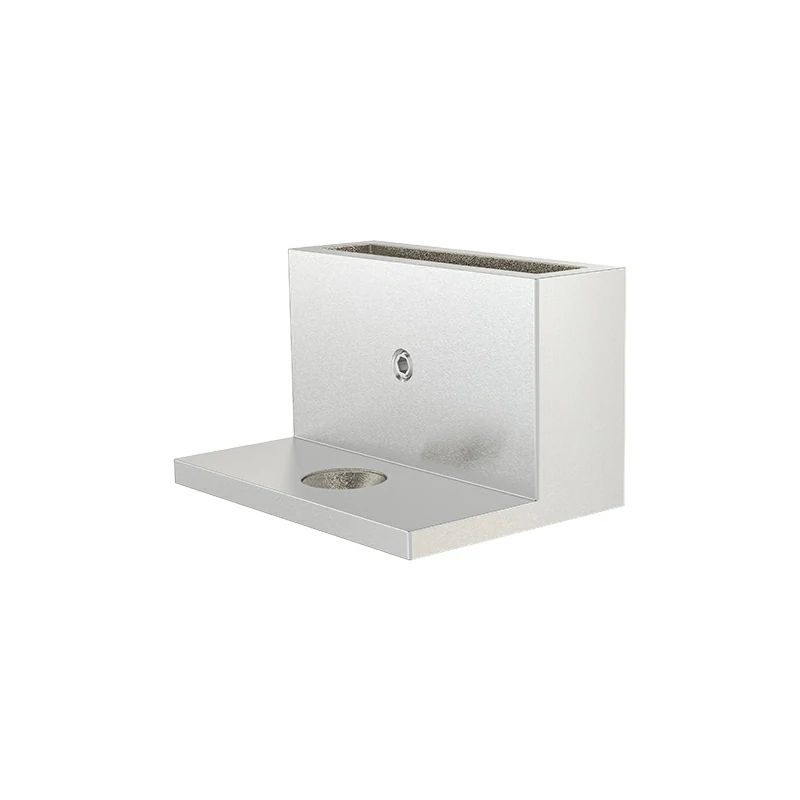

Stainless Steel Handrail Wall Bracket

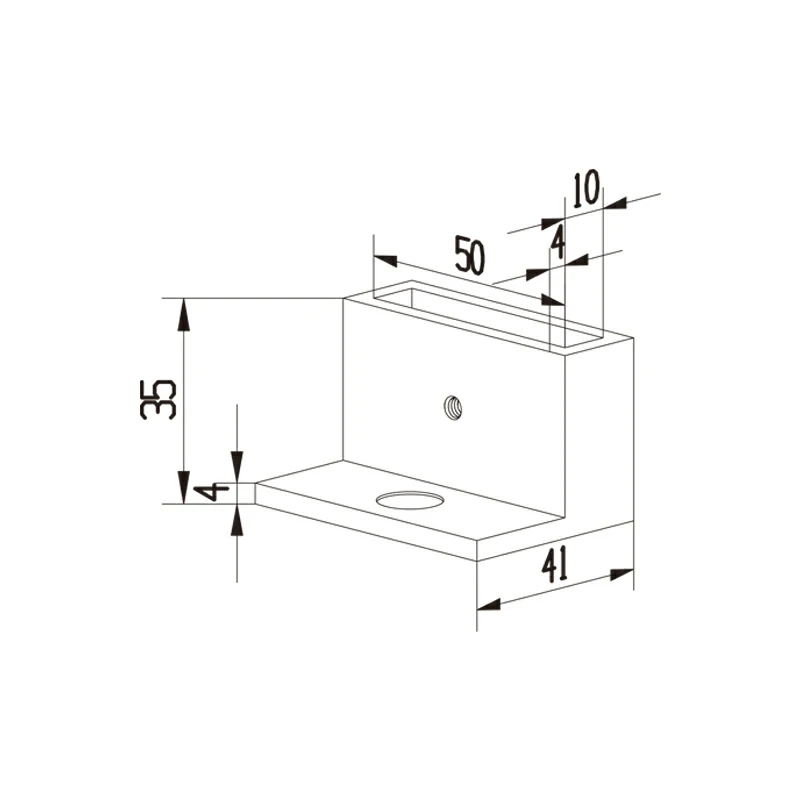

Stainless Steel Handrail Wall Bracket Structure
Stainless Steel Handrail Wall Bracket Stainless Steel Handrail Wall Bracket Structure

Handrail Wall Bracket

Part No. LS-5010-WB

Coupling: 50mm*10mm
Weight 0.19Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Bracket Description

This Stainless Steel Handrail Wall Bracket is used to connect the parts of a stair railing that are attached to the wall. These handrail brackets are specifically designed for wall mounting, allowing the handrail to be securely fixed to the wall surface for added safety and durability. Constructed from stainless steel, the wall bracket offers durability and corrosion resistance, ensuring long-term stability in various environments.

Wall brackets for handrails come in various designs, finishes and styles to complement different architectural styles and preferences, providing both functional support and aesthetic appeal.



Handrail Bracket Specifications

Product Name

Handrail Against The Wall Connector

Coupling

50mm*10mm

Weight

0.19Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

The stainless steel handrail wall bracket is typically easy to install, with mounting holes for attaching to the wall and securing the handrail in place. Installing a Stainless Steel Handrail Wall Bracket typically involves attaching the base plate to the wall using screws or other fasteners. The handrail is then positioned on the bracket arm and secured in place using screws or fittings designed for this purpose.

Ensure that the brackets have sufficient strength and durability to withstand the stresses on the handrail and the weight under the conditions of use. Follow local building codes and safety regulations to ensure that the connectors are used in compliance and remain safe.
