Square Tube Wall Bracket

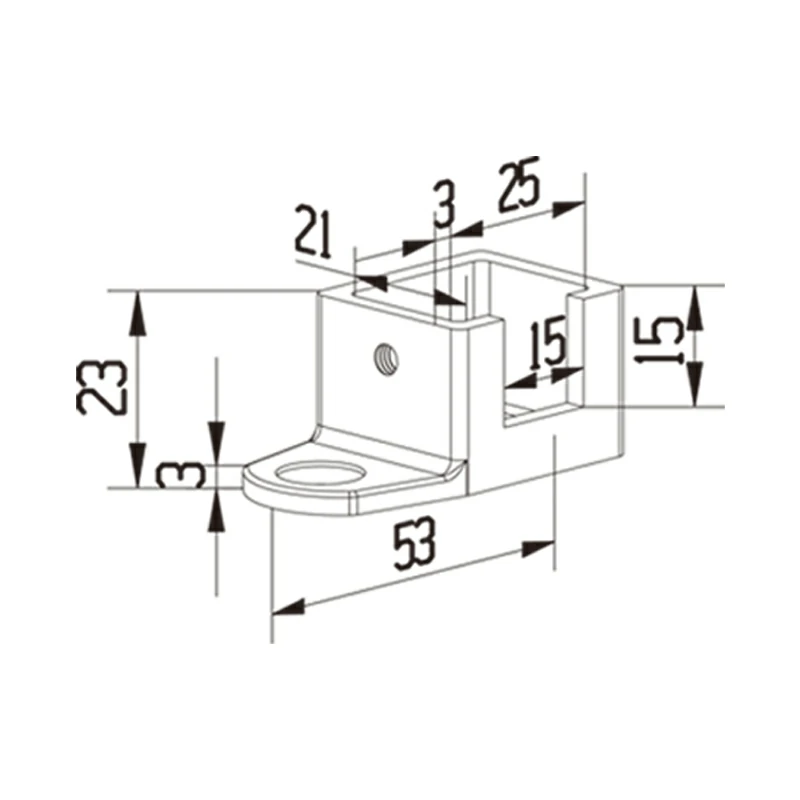

Square Tube Wall Bracket Structure
Square Tube Wall Bracket Square Tube Wall Bracket Structure

Handrail Wall Bracket

Part No. LS-WB-S25SL

Coupling: 21mm*25mm
Weight 0.08Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Bracket Description

Stainless Steel Square Tube Wall Bracket for handrail is a type of wall bracket specifically designed to support handrails in a stylish and functional manner. The primary function of these brackets is to provide sturdy support for handrails mounted on walls. The compact size of these brackets makes them ideal for installations where space is limited or where a more discreet mounting option is preferred. They provide structural support without protruding too far from the wall.



Handrail Bracket Specifications

Product Name

Handrail Against The Wall Connector

Coupling

21mm*25mm

Weight

0.08Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

These mini square tube wall brackets are typically constructed from high-quality stainless steel. Installing a Stainless Steel Mini Square Tube Wall Bracket involves securely mounting the bracket to the wall using appropriate screws or fasteners. The handrail is then attached to the bracket, creating a reliable support system for users.

Ensure that the handrail brackets have sufficient strength and durability to withstand the stresses on the handrail and the weight under the conditions of use.
