Side Mount Handrail Bracket

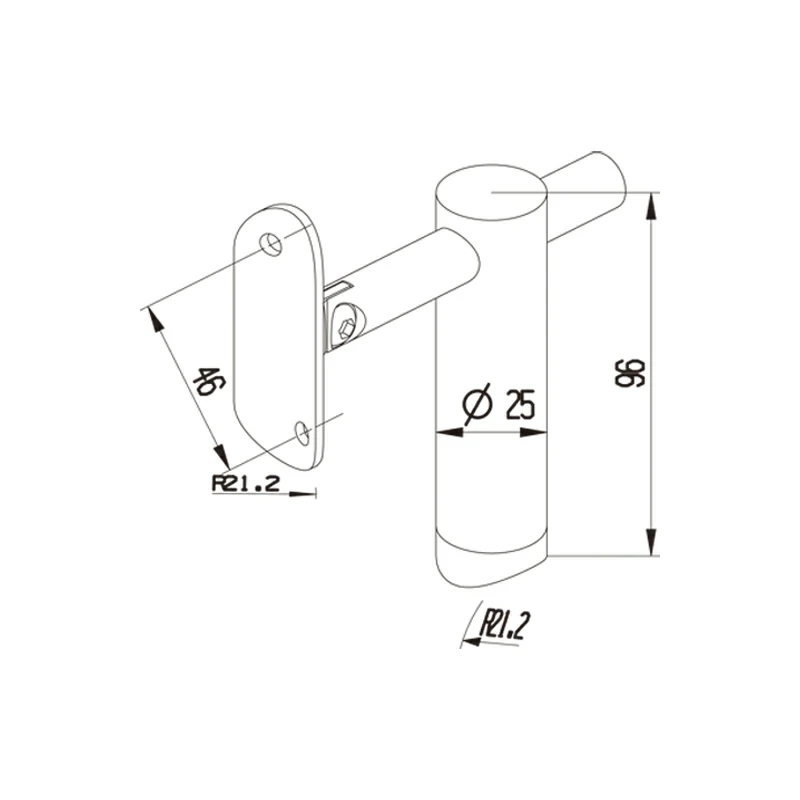

Side Mount Handrail Bracket Structure
Side Mount Handrail Bracket Side Mount Handrail Bracket Structure

Adjustable Handrail Bracket Side Mount

Part No. LS-WBT07



Coupling: ∅42.4mm
Weight 0.37Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Bracket Description

The primary function of a Stainless Steel Side Mount Handrail Bracket Adjustable is to securely attach a handrail to a wall or other vertical surface at the side. These brackets are adjustable, meaning they can be modified to accommodate different angles or positions of the handrail. Stainless Steel Side Mount Handrail Bracket Adjustable is commonly used in staircases, balconies, walkways, and other areas where a handrail needs to be mounted along the side of a wall.

Handrail Bracket Specifications

Product Name

Handrail Bracket

Coupling

∅42.4mm

Weight

0.37Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

These handrail brackets are mounted on the side of the wall using screws or bolts, and the handrail is then attached to the brackets. The adjustable feature allows for fine-tuning the position of the handrail to ensure a proper and comfortable grip for users. Regular inspection and tightening of fasteners may be necessary to maintain the stability of the handrail system.

Ensure that these brackets matches the size, shape and material of the handrail to ensure a strong and stable connection. Regularly check the connection parts for any looseness or abnormality and adjust or reinstall if necessary.
