Handrail Cap

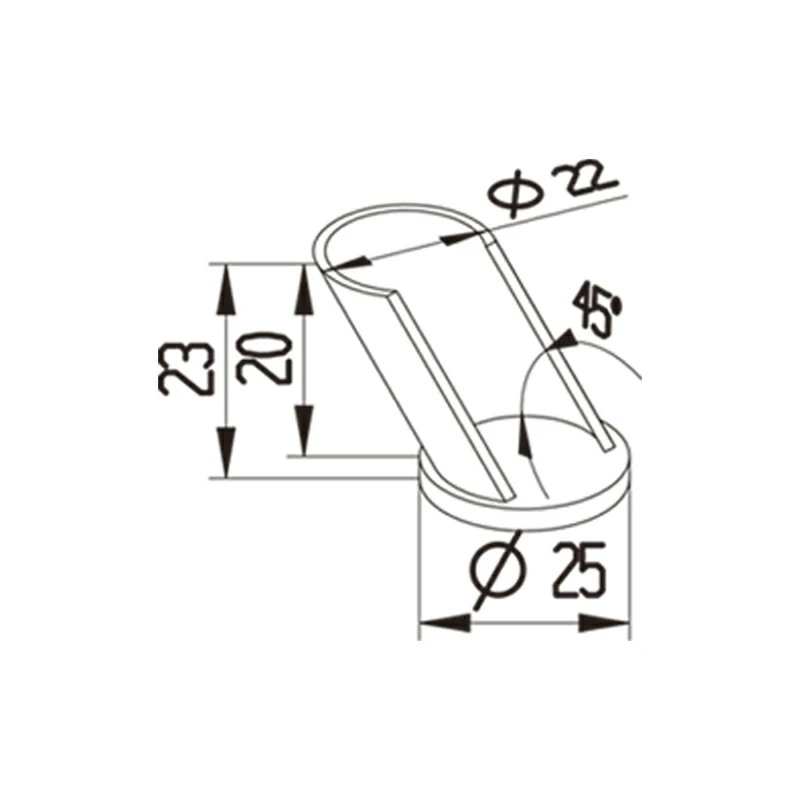

Handrail Cap Structure
Handrail Cap Handrail Cap Structure

Armrest Heads

Part No. LS-NTR-R45

Coupling: Φ25mm
Weight 0.04Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Connector Description

Stainless steel handrail cap is a finishing component that is used to cover and protect the top end of a handrail. It serves both functional and aesthetic purposes in handrail systems. The primary function of a handrail end is to provide a smooth, rounded edge to the top of the handrail, enhancing safety by eliminating sharp edges that could cause injury. It also helps protect the handrail from wear and tear, prolonging its lifespan.

Handrail caps come in various designs and shapes to complement different handrail styles and architectural aesthetics. Common shapes include flat caps, domed caps, and decorative caps with intricate designs. The choice of design can impact the overall look of the handrail system.



Handrail Connector Specifications

Product Name

Armrest Heads

Coupling

Φ25mm

Weight

0.04Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Handrail caps are typically installed by fitting them over the top end of the handrail and securing them in place using adhesive, screws, or other fastening methods. Proper installation is important to ensure a secure and seamless finish.

Stainless steel handrail cap is relatively low maintenance and can be easily cleaned with mild soap and water to maintain their appearance. Periodic inspection and cleaning can help prevent corrosion and maintain the aesthetic appeal of the handrail system.
