Handrail Connector Description

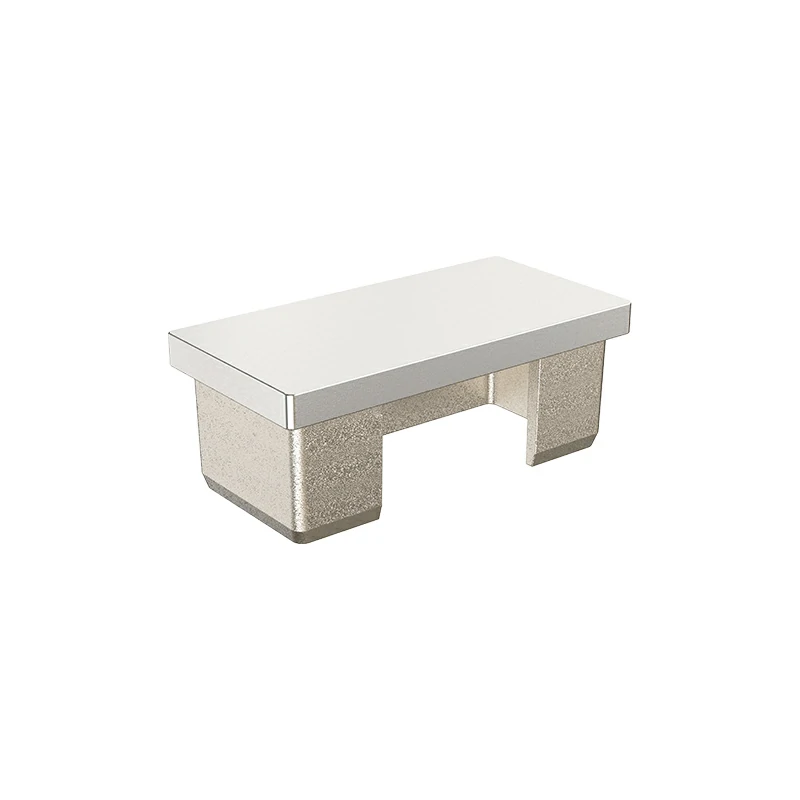

Rectangular End Cap Slotted for a handrail is a specific type of end cap designed to be used with handrails, particularly those with a slotted or rectangular profile. End caps provide a finished look to the ends of handrails, creating a smooth and polished appearance. They can enhance the overall aesthetics of the handrail system by covering exposed ends and providing a clean, professional finish.
Handrail Connector Specifications
|
Product Name |
Armrest Heads |
|
Coupling |

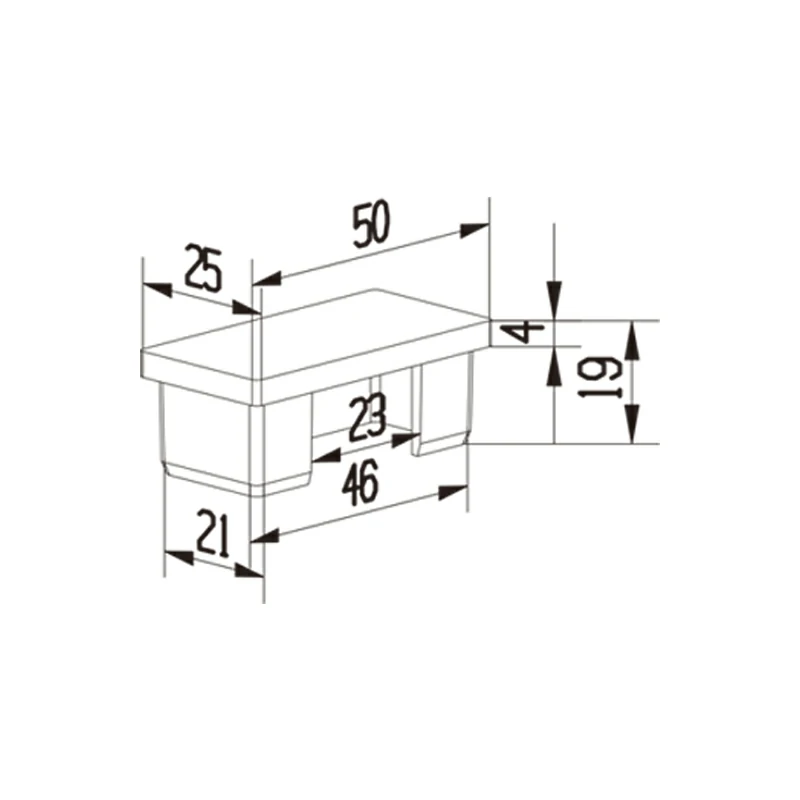

50mm*25mm |
|
Weight |
0.06Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Suitable for all kinds of indoor and outdoor handrails and balustrades, etc. |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
Rectangular End Cap Slotted for handrails are designed to fit specific handrail profiles, such as rectangular or slotted shapes. This allows for a tailored and customized look that complements the overall design of the handrail system.
End caps are usually easy to install and can be secured to the handrail using screws, adhesive, or other fastening methods. They provide a simple yet effective way to complete the handrail assembly.
