2205 Stainless Steel Spigots

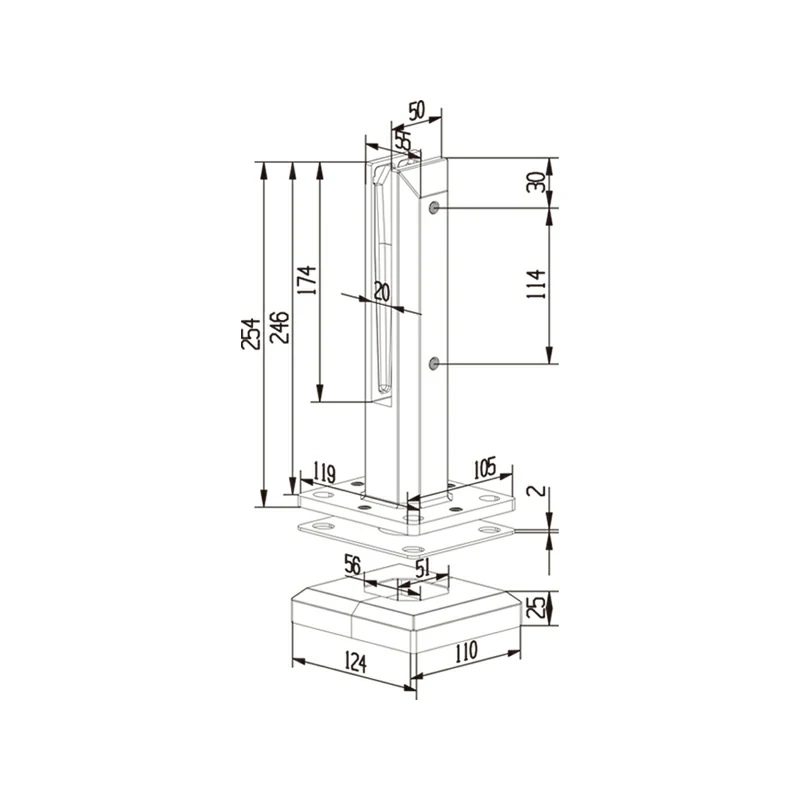

2205 Stainless Steel Spigots ASD-4 Structure
2205 Stainless Steel Spigots 2205 Stainless Steel Spigots ASD-4 Structure

Square Floor-standing Glass Spigot

Part No. ASD-4

Glass Thickness 12-15.04mm
Weight 2.68Kg
Outline Dimension 254mm*124mm*110mm
Material 2205/304/316
Application Large display windows, Partition glass, Glass fences, etc

Glass Spigot Description

This Square floor-standing 2205 stainless steel glass spigots is used for 12-15.04mm glass, suitable for large display windows, partition glass, glass fences, etc. It is a specialized glass spigot designed to securely attach glass panels to a horizontal floor surface.

The bottom of this glass spigot is equipped with adjustable spacers, the maximum adjustable height of 12mm, the maximum adjustable tilt angle of 7°

Glass Spigot Specifications

Product Name

Square Floor-standing Glass Spigot

Outline Dimension


Glass Thickness





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex Stainless Steel 2205, Stainless Steel 304/316


Large Display Windows, Partition Glass, Glass Fences, etc.

Casting Process

Siica Sol Technics Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

2205 Stainless Steel Spigots Package


The mounting holes of the glass spigot base are waist holes, which are tolerant to the center distance of the pre-punched holes on the ground.

The 2205 stainless steel spigots cover is split structure, easier to install.

The ASD-4 2205 stainless steel spigots has a significantly higher load-bearing capacity with a larger glass support area compared to the ASD-3. The ASD-4 is suitable for different market environments.

It should be noted, however, that the weight of the ASD-4 product is correspondingly higher.

2205 Stainless Steel Spigots Application
