Glass Spigot Floor

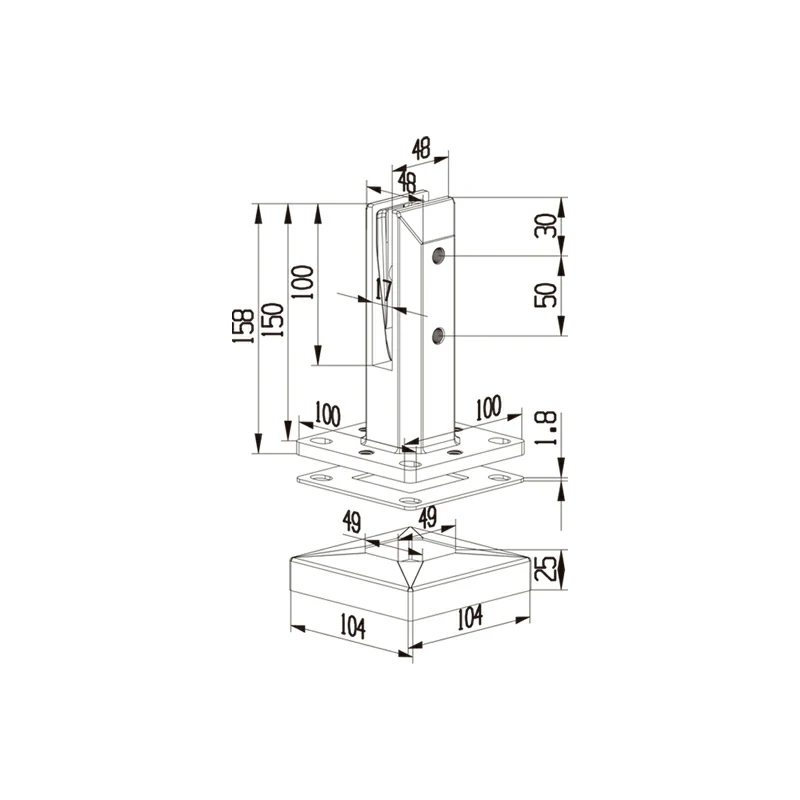

Glass Spigot Floor Structure
Glass Spigot Floor Glass Spigot Floor Structure

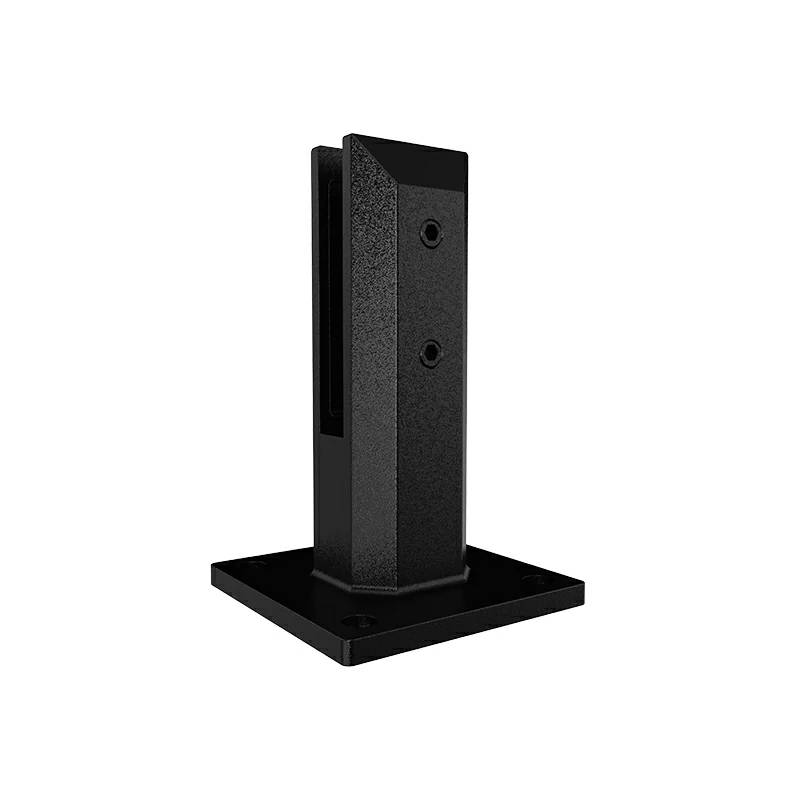

Square Floor-standing Glass Spigot

Part No. ASD-2

Glass Thickness: 12mm
Weight 1.89Kg
Outline Dimension 158mm*104mm*104mm
Material 2205/304/316

Large display windows, Partition glass, Glass fences, etc.

Glass Spigot Description

This Square floor-standing glass spigot is used for 12mm glass, suitable for large display windows, partition glass, glass fences, etc. It is a glass spigot specifically designed to securely attach glass panels to a horizontal floor surface. This type of spigot is designed to support and secure glass panels in a vertical position from the floor without the need for additional posts or handrails.

The bottom of this glass spigot is equipped with adjustable spacers, which can be convenient for workers to install when the ground is not level, the maximum adjustable height of 12mm, the maximum adjustable tilt angle of 7°.

Glass Spigot Specifications

Product Name

Square Floor-standing Glass Spigot

Outline Dimension


Glass Thickness





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex Stainless Steel 2205, Stainless Steel 304/316


Large display windows, Partition glass, Glass fences, etc.

Casting Process

Siica Sol Technics Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Glass Spigot Floor Package


Installation of square glass spigot floor-standing involves securely fixing the spigots to the floor using bolts or screws. The glass panels are then positioned between the spigots and held in place, creating a seamless and unobtrusive barrier. Compared to the ASD-1, the ASD-2 is a more compact product with a lighter overall weight, but with a corresponding reduction in maximum load capacity.

When installed properly, square glass spigots contributes to the safety of the glass fencing system by providing stable support that helps prevent accidents or glass breakage.

Glass Spigot Floor Application
