Wall Mounted Glass Spigot

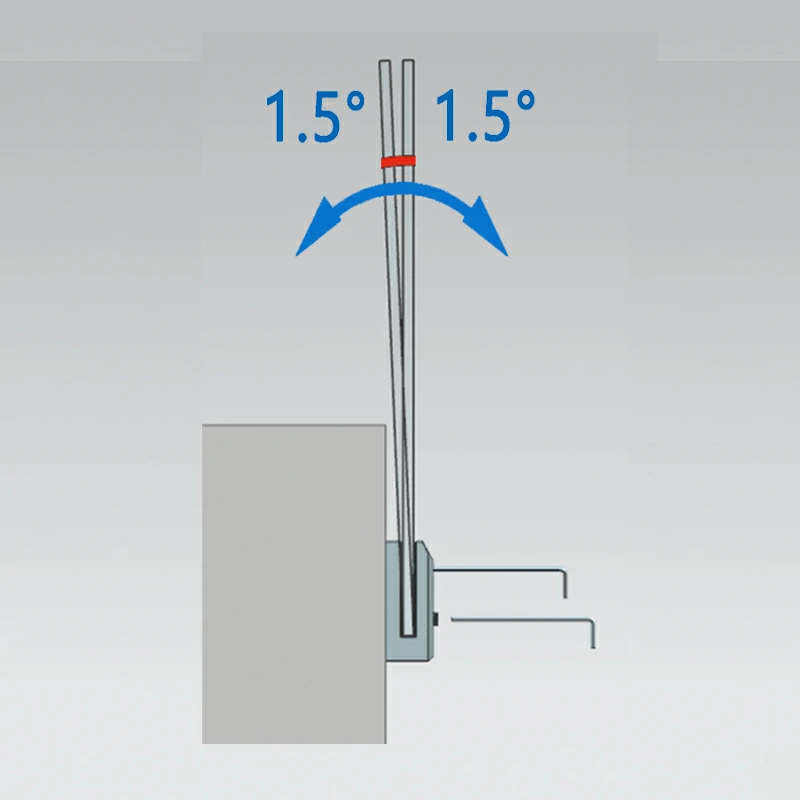

Wall Mounted Glass Spigot Installation

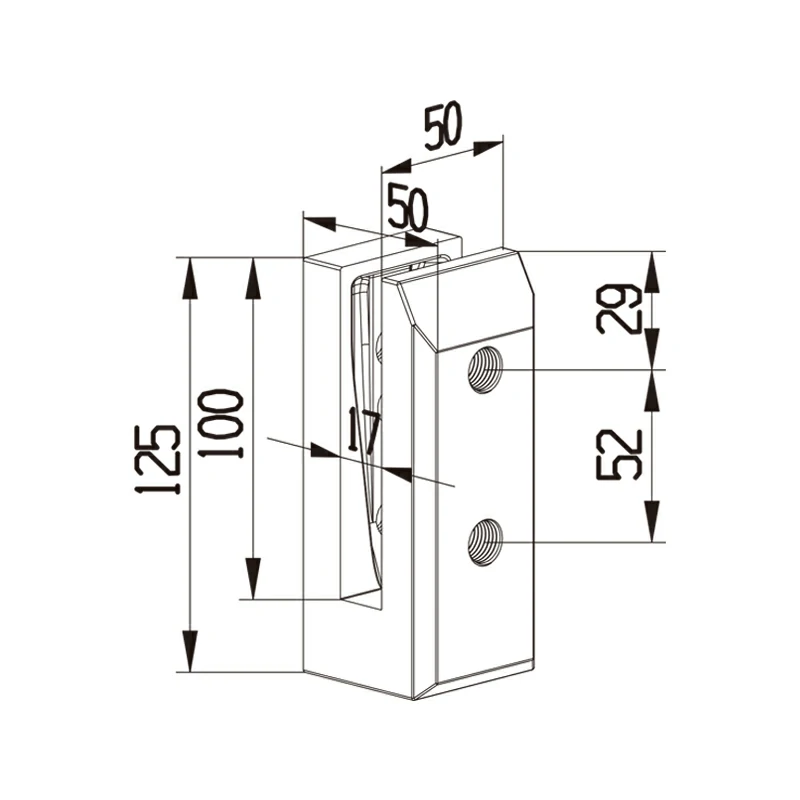

Wall Mounted Glass Spigot Structure
Wall Mounted Glass Spigot Wall Mounted Glass Spigot Installation Wall Mounted Glass Spigot Structure

Wall Mounted Glass Spigot

Part No. ADJ-GW-GS

Outline Dimension 125mm*50mm*50mm
Weight 1.50Kg
Material 2205/304/316
Application: Glass wall, Glass railing, Glass handrail, Glass door, etc.

Glass Spigot Description

This Wall mounted glass spigot is used for glass under 12mm. It is suitable for glass wall, glass railing, glass handrail, glass door, etc. The spigot is equipped with convex steel spacer, which can be used to fix the glass at different angles.

Wall-mounted glass spigot is a type of hardware component used in glass railing systems to secure and support glass panels along a wall. Instead of being installed on the ground or a surface, like traditional spigots, this glass spigot is attached directly to a vertical surface such as a wall or a post.

Glass Spigot Specifications

Product Name

Wall Mounted Glass Spigot

Outline Dimension


Glass Thickness





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex Stainless Steel 2205, Stainless Steel 304/316


Glass Wall, Glass Railing, Glass Handrail, Glass Door, etc.

Casting Process

Siica Sol Technics Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Wall Mount Spigot Package


Easy installation: The wall mount spigot can be directly installed on the wall without any ground or underground structure, making installation simple and fast. This product can be used for concrete walls, brick walls, and wooden walls, etc.

High space utilization: The wall mounted glass spigot does not require any ground or underground structure, so it can maximize the use of space without occupying ground or underground space

High transparency: When the wall mount spigot is used, it can achieve a completely transparent effect due to the absence of any ground or underground structure, which improves the lighting rate and field of vision of the space.

Reliable quality: The wall mount spigot is usually made of high-strength materials such as stainless steel, which has excellent properties such as oxidation resistance, corrosion resistance, and wear resistance, and has a long service life and reliable quality.

Wall Mount Spigot Application
