Glass To Glass Latch

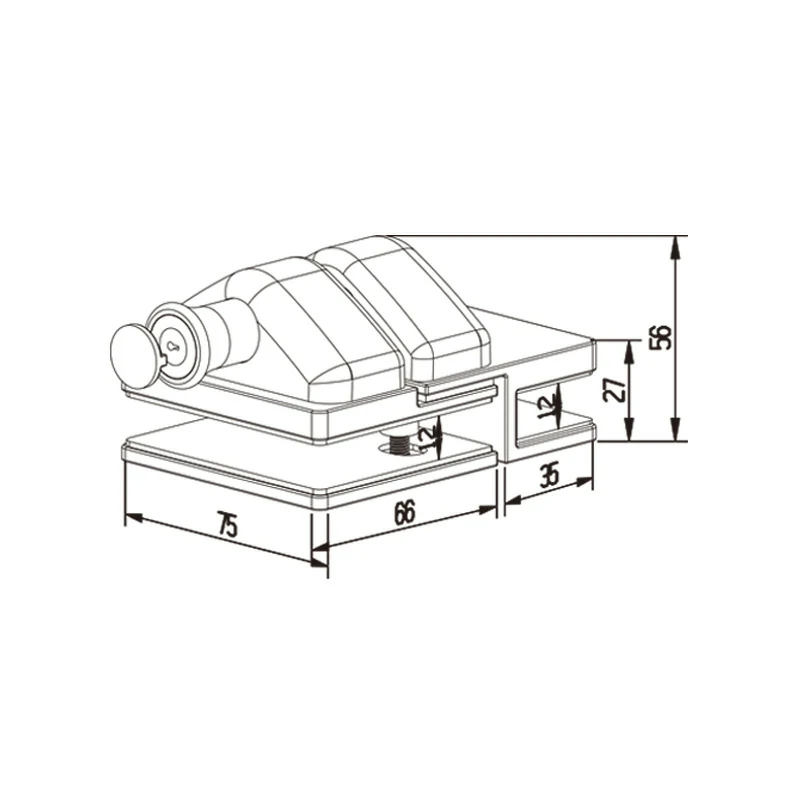

Glass To Glass Latch Structure
Glass To Glass Latch Glass To Glass Latch Structure

Door Latch

Part No. LS-DL-346

Glass Thickness 8-12mm
Weight 1.05Kg
Outline Dimension 101mm*75mm*56mm
Material 2205/304/316
Application: Pools, glass enclosures, etc.

Door Latch Description

Glass door latch is used for 8-12mm glass and is used to ensure that doors are securely closed and held in place. Glass to glass latch is designed to securely close and latch two glass panels together, typically used for frameless applications like shower doors, railings, or partitions. These latches are designed to provide a clean and minimalistic look while ensuring a secure closure between the glass panels. Glass-to-glass latches come in various designs and finishes to complement different styles and applications, offering both functionality and visual appeal in glass installations.



Door Latch Specifications

Product Name

Door Latches

Outline Dimension

101mm*75mm*56mm

Glass Thickness

8-12mm

Weight

1.05Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Pools, glass enclosures, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Take care that this door latch and its surroundings are clean. Dust, sand and other debris may affect the performance of the lock slot.

Ensure the latch is securely installed and properly aligned with the strike plate for optimal functionality. Regularly inspect the latch and strike plate for any signs of wear or damage, and replace them if necessary. Avoid using excessive force when opening or closing the door, as this can damage the latch or the glass.
Glass To Glass Latch Application
