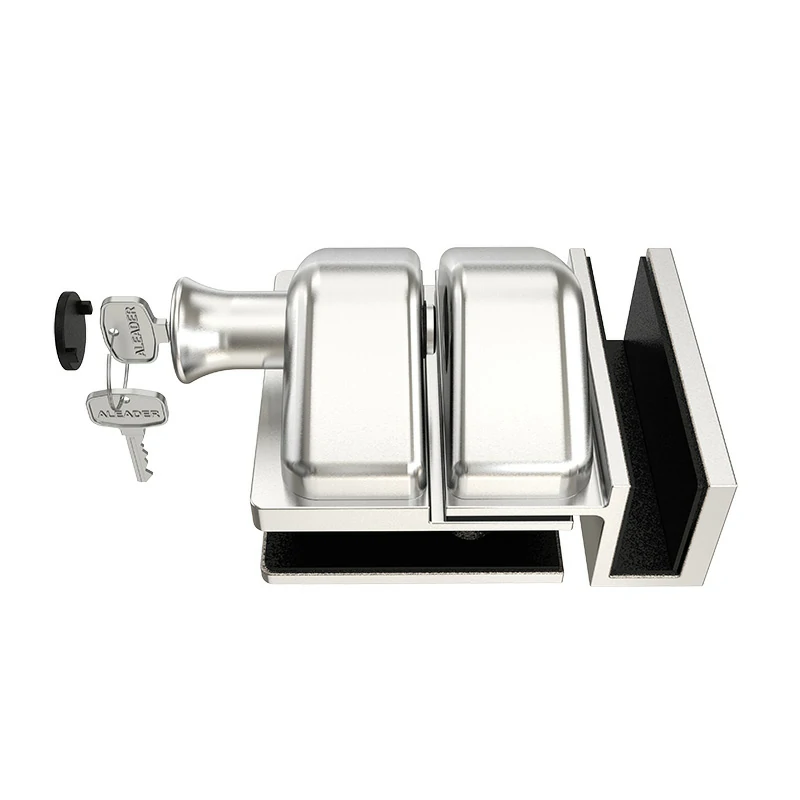

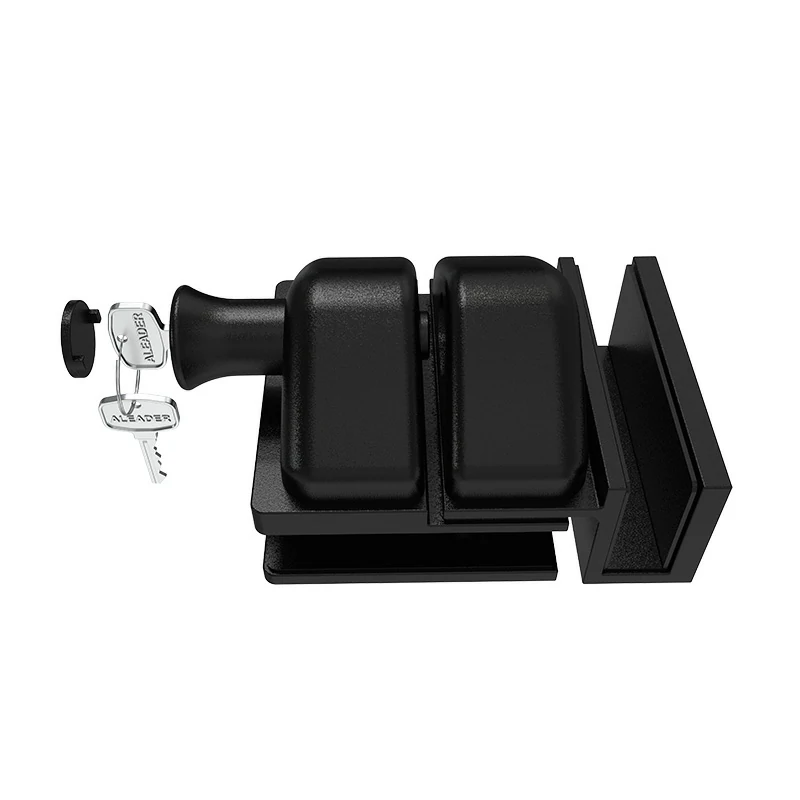

Stainless Steel Latch For Glass Door Pool 90 Degree

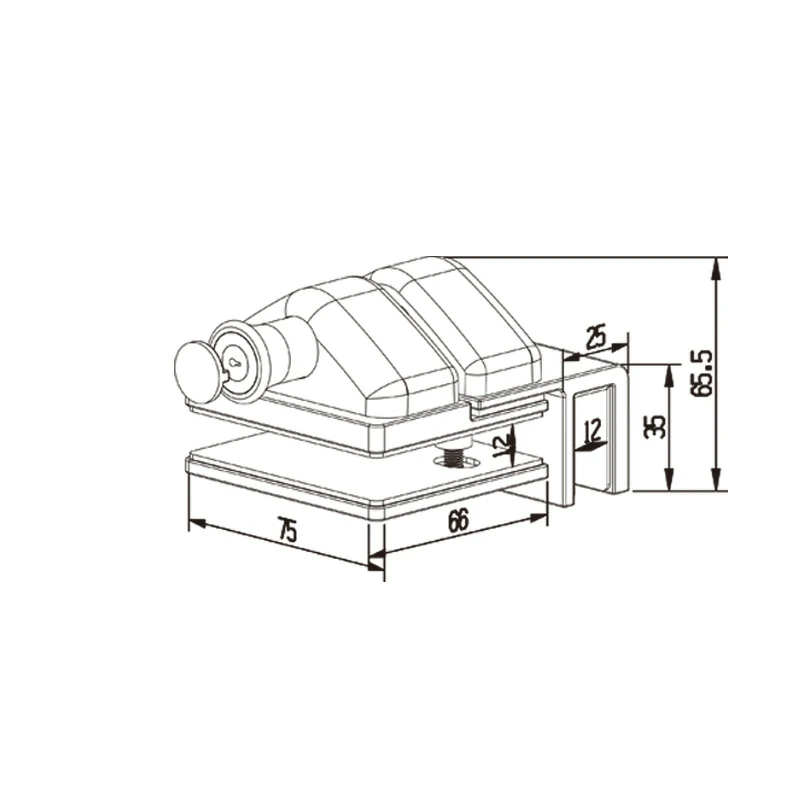

Latch For Pool Glass Door Structure
Stainless Steel Latch For Glass Door Pool 90 Degree Latch For Pool Glass Door Structure

Glass Door Latch 90 Degree

Part No. LS-DL-323

Glass Thickness 8-12mm
Weight 0.86Kg
Outline Dimension 91mm*75mm*65.5mm
Material 2205/304/316
Application: Pools, glass enclosures, etc.

Glass Door Latch Description

Stainless steel latch for glass door is designed to be sleek, modern, and visually appealing to complement the aesthetics of glass doors and pool areas. These glass door latchs are equipped with mechanisms that allow the door to be securely closed and locked to prevent unauthorized access to the pool area.

Latch for glass doors are made of stainless steel, which is resistant to corrosion, rust, and staining, making it ideal for pool environments where exposure to water and chemicals is common. It is designed for easy operation by adults while incorporating safety features to prevent children from opening the door unsupervised.


Glass Door Latch Specifications

Product Name

Door Latches

Outline Dimension


Glass Thickness





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex stainless steel 2205, Stainless steel 304/316


Pools, glass enclosures, etc.

Casting Process

Silica Sol Technics with Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Ensure the latch is compatible with the thickness of your pool gate glass door, this glass to glass latch is used for 8-12mm glass. Follow the installation instructions carefully to ensure the latch is securely and properly installed on your glass door. Proper installation is essential for the latch to function effectively and securely.

Close the door with moderate force to prevent additional stress on Door Latches, reducing wear and prolonging service life. Regularly inspect the latch and strike plate for any signs of wear or damage, and replace them if necessary.

Stainless Steel Latch For Pool Glass Door
