Frameless Glass Door Latch

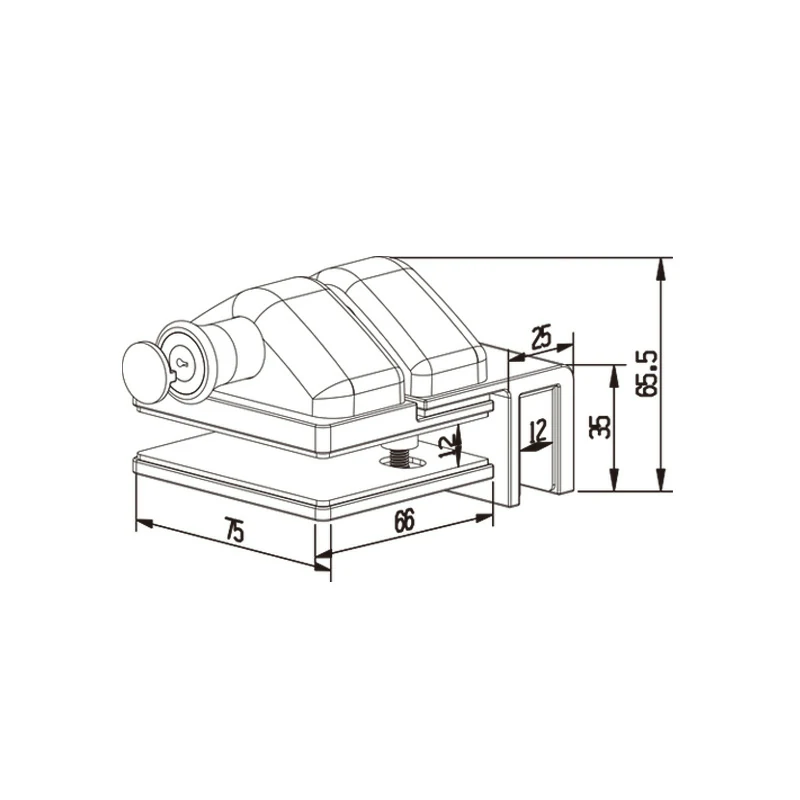

Frameless Glass Door Latch Structure
Frameless Glass Door Latch Frameless Glass Door Latch Structure

Door Latch

Part No. LS-DL-348

Glass Thickness 8-12mm
Weight 1.01Kg
Outline Dimension 91mm*75mm*66.5mm
Material 2205/304/316
Application: Pools, glass enclosures, etc.

Door Latch Description

Glass door latch is used for 8-12mm glass and is used to ensure that doors are securely closed and held in place. Frameless glass door latch is a type of hardware used to secure a frameless glass door. These latches are designed specifically for frameless glass doors, which are doors that lack a surrounding frame or border. The latch is usually installed directly onto the glass and may feature a sleek, minimalist design to complement the frameless aesthetic. It's an important component for ensuring the security and functionality of frameless glass doors in various architectural and interior design applications.

Frameless glass door latch is constructed from high-quality tainless steel, for long-lasting performance and resistance to wear and tear. Attaches directly to the glass panels, eliminating the need for a door frame and preserving the seamless look of frameless doors.

Door Latch Specifications

Product Name

Door Latches

Outline Dimension

91mm*75mm*66.5mm

Glass Thickness

8-12mm

Weight

1.01Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Pools, glass enclosures, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Ensure the latch is securely installed and properly aligned with the strike plate for optimal functionality and security. Regularly inspect the latch and strike plate for any signs of wear or damage, and replace them if necessary.

Take care that this product and its surroundings are clean. Dust, sand and other debris may affect the performance of the lock slot. Close the door with moderate force to prevent additional stress on Door Latches, reducing wear and prolonging service life.

Frameless Glass Door Latch Application
