In the industrial field, extreme working conditions are not exclusive to large-scale equipment - many core components of medium size (usually 100mm-1000mm in dimension and 5kg-50kg in weight) also need to operate stably in harsh environments such as high temperature, low temperature, high pressure, corrosion, and wear. Although these medium-sized castings are not as "massive" as blast furnace bodies or offshore platform pile legs, they carry the key functions of equipment. Once they fail, the entire machine may stop. With the advantages of customized materials, integrated structure, and precise performance matching, medium-sized castings have become the "backbone force" under extreme working conditions. Today, we focus on five typical extreme working conditions and use practical application cases of medium-sized castings to reveal how they conquer extreme environments with hardcore strength.
1. High-Temperature Working Conditions: Withstanding 500-1000℃ Heat, Guarding Core Transmission and Heat Exchange of Equipment
Medium-sized castings under high-temperature working conditions need to maintain strength and resist oxidation in continuous high temperatures, while avoiding thermal deformation affecting equipment accuracy. Such castings are widely used in engines, boilers, heat treatment equipment and other scenarios, with dimensions mostly between 200mm-800mm and weight between 10kg-30kg.
Typical Applications: Automotive Turbocharger Turbines, Industrial Boiler Heat Exchanger Tube Sheets
The turbine of an automotive turbocharger is a typical medium-sized high-temperature casting (150-250mm in diameter, 3-5kg in weight). It directly contacts high-temperature exhaust gas of 900-1050℃ during operation and bears high-speed rotation of more than 100,000 revolutions per minute. It is made of nickel-based superalloy precision castings (such as Inconel 713C). The vacuum investment casting process ensures that the castings are dense and defect-free. Chromium and aluminum elements in the alloy form a dense oxide film to resist high-temperature oxidation; the blades are designed with aerodynamic optimization and integrally formed without welds, avoiding weld cracking at high temperatures. The service life can reach more than 100,000 kilometers, meeting the power output requirements of the engine under extreme working conditions.
The tube sheet of an industrial boiler heat exchanger (400-800mm in dimension, 50-80mm in thickness, 20-40kg in weight) is in high-temperature flue gas of 500-600℃ for a long time, and at the same time bears steam pressure and alternating hot and cold impact. It is made of heat-resistant steel castings (such as ZG20CrMoV). Grain refinement is achieved through normalizing + tempering heat treatment, and the high-temperature tensile strength remains above 400MPa, with excellent thermal fatigue resistance; the dense tube holes (15-25mm in diameter) on the tube sheet ensure positional accuracy through precision machining, ensuring sealing cooperation with heat exchange tubes and avoiding high-temperature steam leakage. The heat exchange efficiency of the heat exchanger is stable above 90%.
Advantages of Castings: Stable High-Temperature Strength, Compact Structure Adapting to Equipment Space
Medium-sized high-temperature castings can accurately match temperature requirements by precisely controlling alloy composition (such as the proportion of nickel, chromium, and molybdenum). At the same time, the compact structure formed integrally can adapt to the limited space inside the equipment, avoiding stress concentration problems of spliced parts at high temperatures, and balancing strength and installation flexibility.
2. Low-Temperature Working Conditions: Resisting -40℃ to -196℃ Cold, Ensuring Operation of Precision Equipment
In low-temperature environments, medium-sized castings need to overcome "low-temperature brittleness" and have sufficient toughness while maintaining strength to avoid impact fracture. Such castings are commonly used in LNG equipment, polar construction machinery, and low-temperature refrigeration systems, with dimensions mostly between 150mm-600mm and weight between 8-25kg.
Typical Applications: LNG Vehicle Cylinder Valve Body, Hydraulic Motor Housing of Polar Scientific Research Equipment
The valve body of an LNG vehicle cylinder (150-250mm in dimension, 5-8kg in weight) needs to control the inflow and outflow of liquefied natural gas in an ultra-low temperature environment of -162℃, while bearing the pressure of 0.8MPa inside the cylinder. It is made of 9Ni steel castings. The impact toughness of 9Ni steel at ultra-low temperature can reach more than 120J/cm², which is much higher than that of ordinary carbon steel; the internal flow channel of the valve body is formed at one time through precision casting, with a surface roughness Ra≤1.6μm, ensuring smooth flow of LNG at low temperature. The sealing surface adopts a hard-seal structure, and the leakage rate is lower than 0.01MPa·L/s, ensuring the safety of on-board LNG transportation.

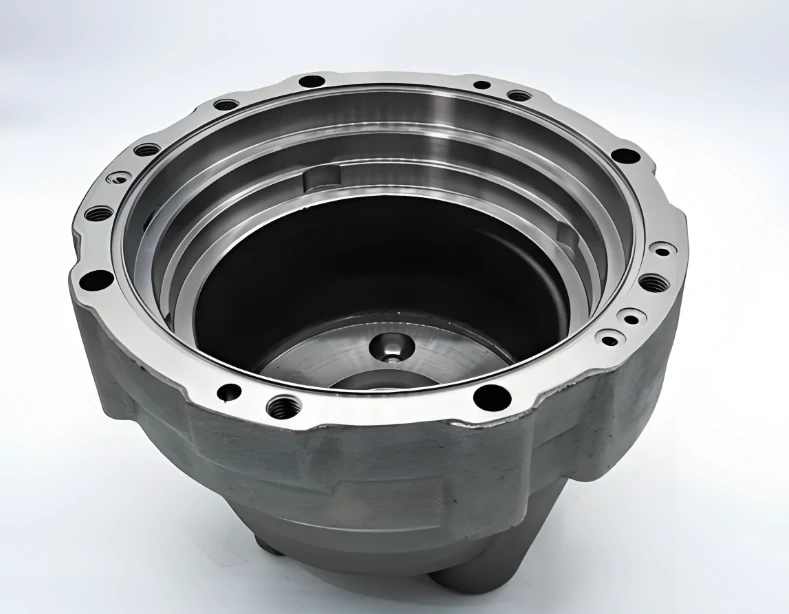

The hydraulic motor housing of polar scientific research equipment (300-600mm in dimension, 15-25kg in weight) needs to work in a polar environment of -50℃, bearing the high-pressure impact of hydraulic oil and the vibration of ice and snow ground. It is made of low-temperature tough ductile iron castings (such as QT450-10AL). The composition is optimized by adding aluminum and manganese elements. The tensile strength at low temperature is ≥450MPa, and the impact toughness is ≥10J/cm², avoiding cracking of the housing under low-temperature impact; the mounting flange and bearing seat of the housing are integrally formed, and the dimensional accuracy is controlled at IT8 level, ensuring the transmission efficiency of the hydraulic motor and meeting the operation requirements of scientific research equipment under extreme low temperature.
Advantages of Castings: Excellent Low-Temperature Toughness, High Dimensional Accuracy Adapting to Precision Assembly
Medium-sized low-temperature castings inhibit brittleness through material optimization and heat treatment processes (such as low-temperature annealing). At the same time, the compact structural design and high-precision machining can adapt to the precision assembly requirements of equipment, and still maintain sealing performance and transmission accuracy at low temperatures.
3. High-Pressure Working Conditions: Withstanding 10-100MPa Pressure, Ensuring Safety of Fluid Control and Energy Transmission
Medium-sized castings under high-pressure working conditions need to have high strength, high density, and reliable sealing performance to avoid leakage of high-pressure medium or structural rupture. Such castings are widely used in hydraulic systems, oil drilling and production, high-pressure valves and other fields, with dimensions mostly between 100mm-500mm and weight between 10-40kg.
Typical Applications: High-Pressure Hydraulic Valve Core, Oil Wellhead Choke Valve Body
The high-pressure hydraulic valve core (100-200mm in dimension, 30-50mm in diameter, 3-5kg in weight) is the core control component of the hydraulic system. It needs to bear the high-pressure hydraulic oil impact of 31.5MPa and realize precise flow control at the same time. It is made of high-strength alloy structural steel castings (such as 40CrNiMoA). Through forging + quenching and tempering heat treatment, the tensile strength can reach more than 980MPa, and the yield strength is ≥835MPa. The surface of the valve core reaches a hardness of HRC60 or more after nitriding treatment, with excellent wear resistance; the conical surface sealing structure of the valve core is processed by precision grinding, and the fit gap is controlled at 0.005-0.01mm, ensuring no leakage under high pressure, and the response accuracy of the hydraulic system is ≤0.05s.
The oil wellhead choke valve body (300-500mm in dimension, 20-40kg in weight) needs to bear the high pressure of 70MPa of crude oil and control the crude oil production flow. It is made of sulfur-resistant steel castings (such as A182 F53 duplex stainless steel). Duplex stainless steel has the advantages of both austenite and ferrite, with a tensile strength ≥620MPa and excellent resistance to sulfide stress corrosion cracking, which can adapt to the hydrogen sulfide corrosion in crude oil; the flow channel and sealing surface of the valve body are integrally formed without welding weak points, and the sealing surface is surfacing with hard alloy by plasma, with a hardness of HRC55-60. The service life of the choke valve can reach more than 5 years, ensuring the continuous operation of oil production.
Advantages of Castings: High Overall Strength, Reliable Sealing Adapting to High-Pressure Scenarios

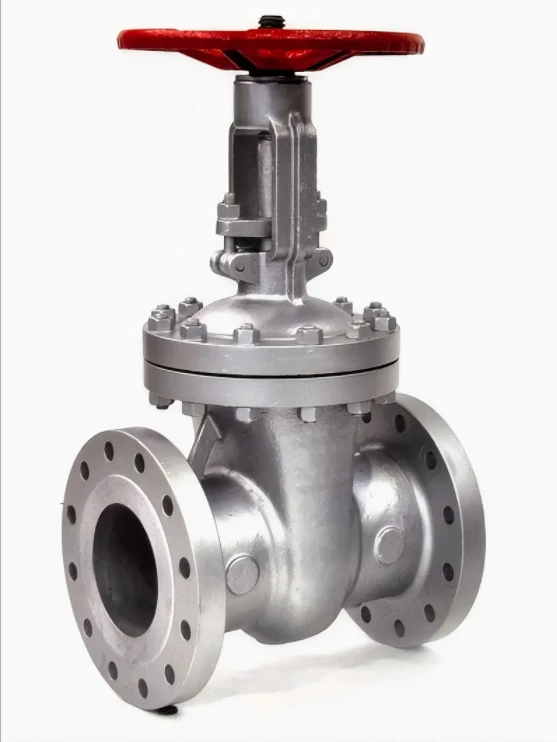

Medium-sized high-pressure castings adopt an integral forming process to avoid sealing hidden dangers caused by multi-component splicing. Through material strengthening and precision machining, it is ensured that there are no defects such as pores and shrinkage cavities inside, which can evenly bear high-pressure loads. At the same time, the compact structure can adapt to the installation space of the equipment, balancing safety and practicability.
4. Corrosive Working Conditions: Resisting Corrosion of Strong Acids, Strong Bases and Salt Spray, Extending Service Life of Chemical and Marine Equipment
Medium-sized castings under corrosive working conditions need to resist long-term erosion of media such as strong acids, strong bases, and salt spray, while maintaining structural integrity and performance stability. Such castings are commonly used in chemical reaction equipment, marine machinery, and electroplating equipment, with dimensions mostly between 200mm-700mm and weight between 12-35kg.
Typical Applications: Chemical Centrifugal Pump Impeller, Offshore Platform Hydraulic Valve Block
The chemical centrifugal pump impeller (200-400mm in dimension, 8-15kg in weight) needs to transport corrosive media such as 98% sulfuric acid and 30% sodium hydroxide, while bearing the centrifugal force caused by high-speed rotation. It is made of Hastelloy castings (such as C276 Hastelloy). The corrosion rate of Hastelloy to strong acids and bases is less than 0.1mm/year, and it can still maintain good mechanical properties even in a high-temperature corrosive environment of 80℃; the blades of the impeller are designed in a streamlined shape and integrally formed without welds, avoiding penetration of corrosive media from the welds. The transmission efficiency of the centrifugal pump is stable above 75%, and the service life can reach more than 8 years.

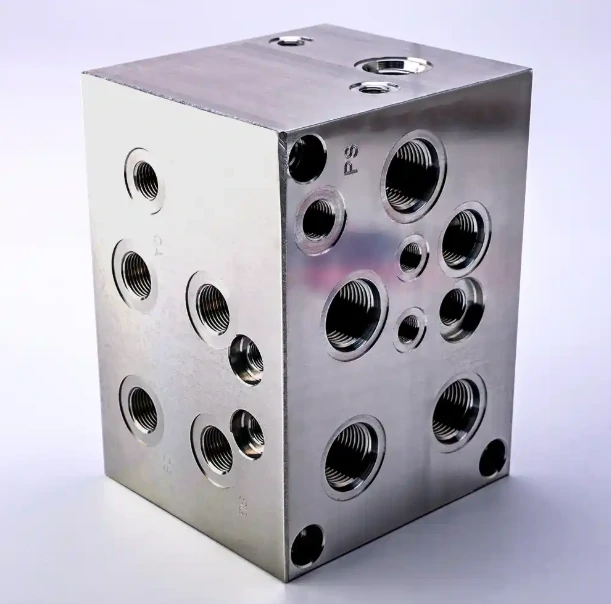

The offshore platform hydraulic valve block (300-700mm in dimension, 20-35kg in weight) is exposed to the marine salt spray environment for a long time, while bearing the high-pressure impact of hydraulic oil. It is made of 2205 duplex stainless steel castings. The salt spray corrosion resistance of duplex stainless steel is 5-10 times that of 304 stainless steel, and the pitting potential is ≥350mV, which can effectively resist corrosion in the marine environment; the complex oil circuit inside the valve block is formed by precision casting and CNC machining, and the hole diameter tolerance is controlled at ±0.02mm, ensuring smooth flow of hydraulic oil. The leakage rate of the valve block is less than 0.001MPa·L/s, meeting the control requirements of the hydraulic system of the offshore platform in harsh corrosive environments.
Advantages of Castings: Diverse Corrosion-Resistant Materials, Complex Structure Adapting to Functional Requirements
Medium-sized castings for corrosive working conditions can select targeted corrosion-resistant materials (such as Hastelloy, duplex stainless steel, high-silicon cast iron) according to different corrosive media. At the same time, they can be manufactured into structures with complex flow channels, blades, and oil circuits to meet the functional requirements of equipment and avoid performance degradation caused by corrosion.
5. Wear Working Conditions: Withstanding Abrasive Erosion, Reducing Loss in Mining and Building Materials Industry
Medium-sized castings under wear working conditions need to have high hardness and good toughness to resist severe wear of abrasives such as ores, sandstones, and slag. Such castings are commonly used in crushers, mills, and conveying equipment, with dimensions mostly between 250mm-800mm and weight between 15-50kg.
Typical Applications: Impact Crusher Hammer, Cement Mill Diaphragm

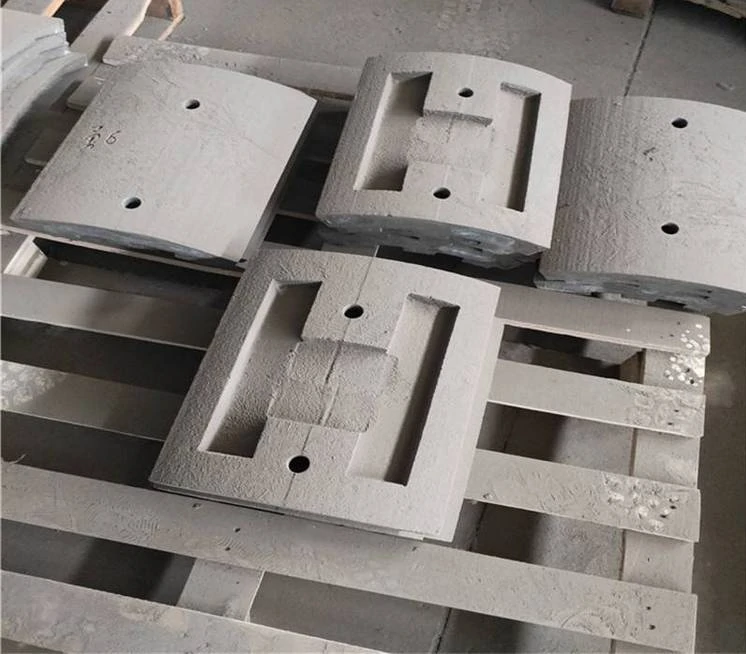

The impact crusher hammer (250-400mm in dimension, 15-25kg in weight) is the core component for crushing ores, which needs to bear the impact wear of granite and basalt with hardness above HRC60. It is made of high-chromium alloy cast iron castings (such as Cr28 high-chromium cast iron). Grain refinement is achieved through modification treatment, and the surface hardness can reach HRC60-65. The wear resistance is 4-6 times that of ordinary high manganese steel; the working surface of the hammer is designed in a streamlined shape and integrally formed without welding, avoiding cracking under impact. One hammer can crush 30,000-50,000 tons of ore, and the service life is more than 3 times longer than that of ordinary hammers, greatly reducing the frequency of equipment shutdown and replacement.
The cement mill diaphragm (500-800mm in dimension, 40-60mm in thickness, 30-50kg in weight) needs to separate cement clinker and steel balls, while bearing the grinding wear of abrasives and the impact of steel balls. It is made of multi-alloy wear-resistant castings (such as KmTBCr26Mo). Hard carbide phases are formed by adding molybdenum, titanium and other elements. The surface hardness of the diaphragm is HRC58-62, and the impact toughness is ≥15J/cm², which can not only resist abrasive wear but also bear the impact of steel balls; the grate holes (10-20mm in diameter) on the diaphragm ensure dimensional accuracy through precision casting, ensuring the classification and screening of cement clinker. The grinding efficiency of the mill is increased by more than 10%, and the service life of the diaphragm can reach more than 2 years.
Advantages of Castings: Balance of Hardness and Toughness, Targeted Wear Resistance
Medium-sized wear-resistant castings achieve a balance of "high surface hardness and high core toughness" through material composition optimization (such as high chromium, adding hard alloy phases) and casting process control, avoiding fracture under wear and impact. At the same time, materials can be customized according to abrasive types and wear intensity to improve wear resistance in a targeted manner.
Conclusion
Although medium-sized castings are moderate in size, they play an "irreplaceable" role under extreme working conditions - from the high-temperature rotation of automotive turbochargers to the ultra-low temperature sealing of LNG valves; from the precise control of high-pressure hydraulic valves to the corrosion resistance of chemical impellers, and then to the wear resistance of crusher hammers. These castings operate stably in harsh environments with the advantages of customized materials, integrated structure, and precise performance matching, ensuring the continuous operation of industrial equipment.
When selecting medium-sized castings for extreme working conditions, the core is to match materials and processes according to environmental parameters (temperature, pressure, corrosive medium, wear type), while considering dimensional accuracy and installation adaptability. If you have questions about "selection of medium-sized castings under a certain type of extreme working conditions" or "application scenarios of special material castings", please leave a message in the comment area, and we will provide you with professional answers!
