Home Glass Railing Brackets Adjustable Handrail Bracket Wall-Mounted
Adjustable Handrail Bracket Stainless Steel

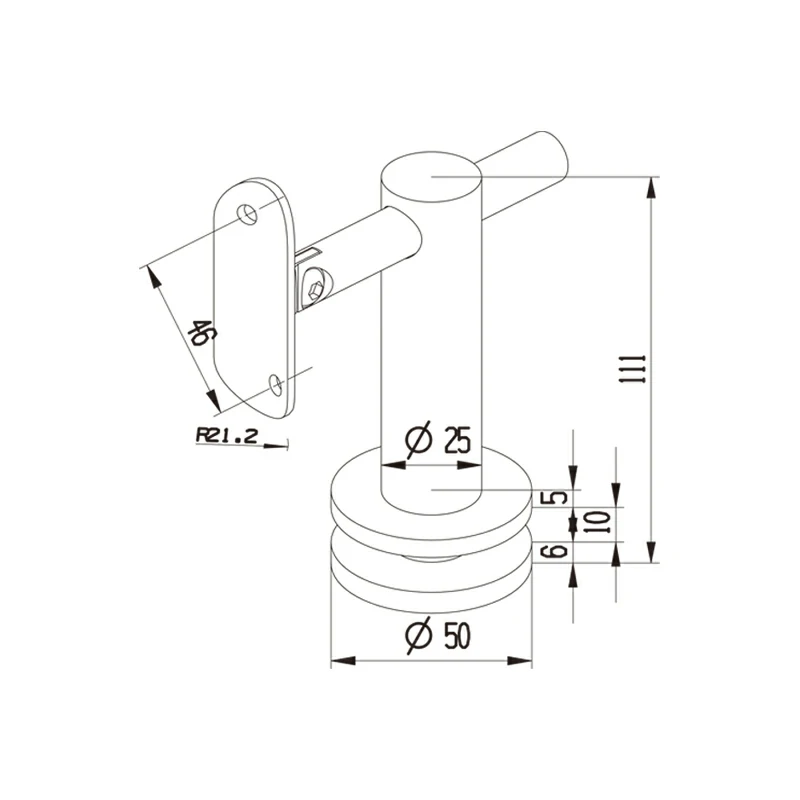

Adjustable Handrail Bracket Stainless Steel Structure
Adjustable Handrail Bracket Stainless Steel Adjustable Handrail Bracket Stainless Steel Structure

Adjustable Handrail Bracket Wall-Mounted

Part No. LS-WBT06

Glass Thickness: 10mm
Weight 0.62Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Bracket Description

Adjustable Stainless Steel Handrail Wall Bracket is a component used in the installation of handrails to provide support and stability while allowing for adjustment in position or angle. The primary function of an adjustable handrail wall bracket made of stainless steel is to securely attach the handrail to the wall and provide support. The adjustability feature allows for fine-tuning the position of the handrail to meet specific requirements or to accommodate variations in the wall surface or stair configuration. Adjustable handrail wall brackets come in various designs to suit different handrail styles and installation needs.

Handrail Bracket Specifications

Product Name

Handrail Bracket

Glass Thickness

10mm

Weight

0.62Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

These handrail wall brackets are typically mounted on the wall using screws or bolts, and the handrail is then attached to the bracket. The adjustability feature may include mechanisms such as set screws or sliding components that allow for easy modifications to the handrail position.

Ensure that these handrail brackets matches the size, shape and material of the handrail to ensure a strong and stable connection. Regularly check the connection parts for any looseness or abnormality and adjust or reinstall if necessary.
