Square wall bracket

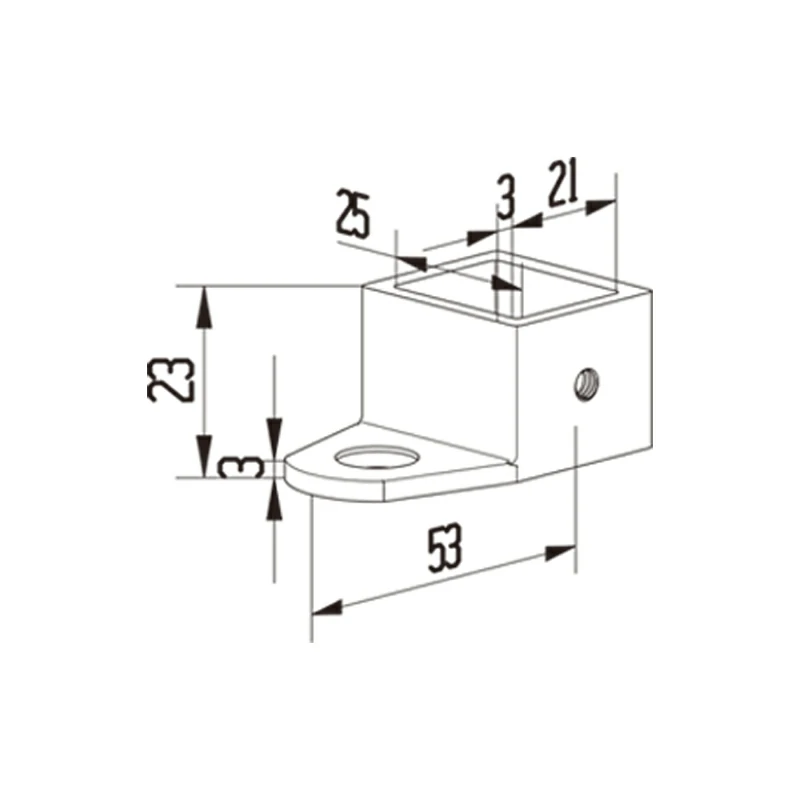

Square wall bracket Structure
Square wall bracket Square wall bracket Structure

Handrail Wall Bracket

Part No. LS-NTR-SW

Coupling: 21mm*25mm
Weight 0.09Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Bracket Description

Stainless Steel Square Wall Bracket for handrail is designed to provide support and stability for handrails in applications where a smaller size is desired or where space is limited. The bracket features a base plate that attaches to the wall and a square-shaped arm that supports the handrail, similar to the standard bracket. These handrail brackets are made of high-quality stainless steel and are compatible with stainless steel handrails. They are commonly used in situations where a more compact and subtle bracket is preferred, such as in residential settings or for installations with narrow staircases or smaller handrail dimensions.

Stainless Steel Square Wall Brackets are chosen not only for their functionality but also for their modern and sleek appearance. The stainless steel finish adds a contemporary touch to the overall design of the handrail system, enhancing the visual appeal of the space.



Handrail Bracket Specifications

Product Name

Handrail Against The Wall Connector

Coupling

21mm*25mm

Weight

0.09Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Installing a Stainless Steel Square Wall Bracket for a handrail involves mounting the bracket securely to the wall using appropriate fasteners. The square handrail is then positioned on the bracket arm and fixed in place using screws or fittings designed for square handrail profiles. Ensure that the handrail brackets have sufficient strength and durability to withstand the stresses on the handrail and the weight under the conditions of use.
