Home Glass Railing Handrail Column Tee Connector
Handrail Tee Connector

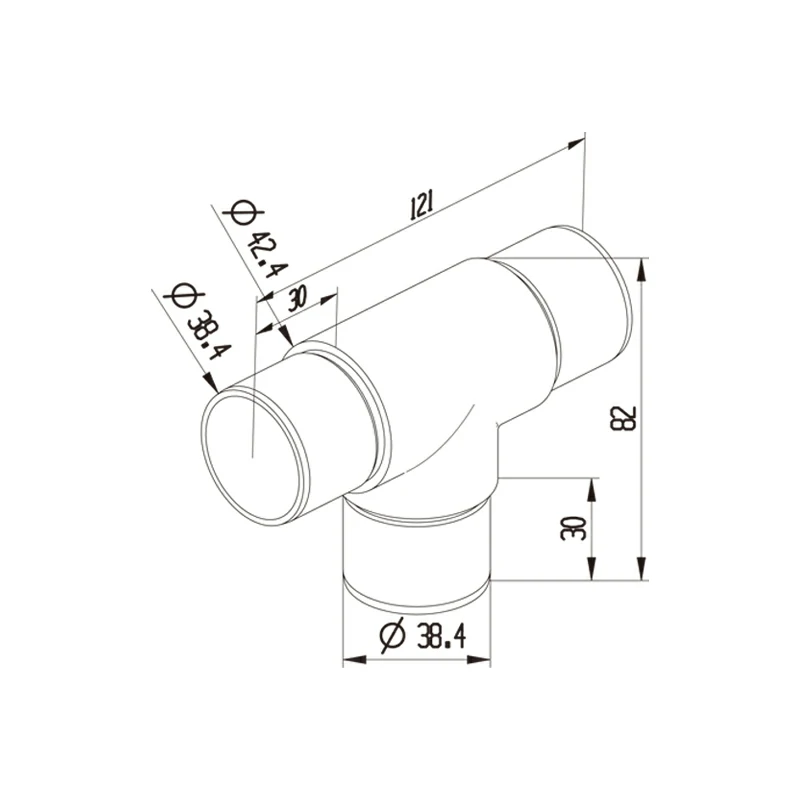

Handrail Tee Connector Structure
Handrail Tee Connector Handrail Tee Connector Structure

Column Tee Connector

Part No. LS-NTR-R42.4-10

Coupling: Φ42.4mm
Weight 0.30Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Connector Description

Stainless steel handrail tee connector is a component used in the construction of handrails. It is specifically designed to join handrail sections at a perpendicular angle, forming a "T" shape. This type of connector provides structural support and stability to the handrail system. Handrail tee connectors come in different sizes and designs to accommodate the specific dimensions and style of the handrail, and they are commonly used in both residential and commercial applications to create secure and visually appealing handrail configurations.



Handrail Connector Specifications

Product Name

Column Tee Connector

Coupling

Φ42.4mm

Weight

0.30Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

The handrail fitting is a member used to connect the columns in a handrail system, and this connector is often used to create branching or crossover structures in a handrail system.
Select materials that are corrosion and abrasion resistant for indoor or outdoor environments. Ensure that connector materials comply with relevant building and safety codes. Determine the connection method, including bolted, welded, or other appropriate connections. Ensure that the connection method provides adequate strength and stability.

Handrail Tee Connector Application
