HomeGlass Railing Handrail Square Top Rail 50mm x 25mm Up/Down Adjustable Connector
Square top rail 50mm x 25mm up/down stainless Steel Adjustable Connector

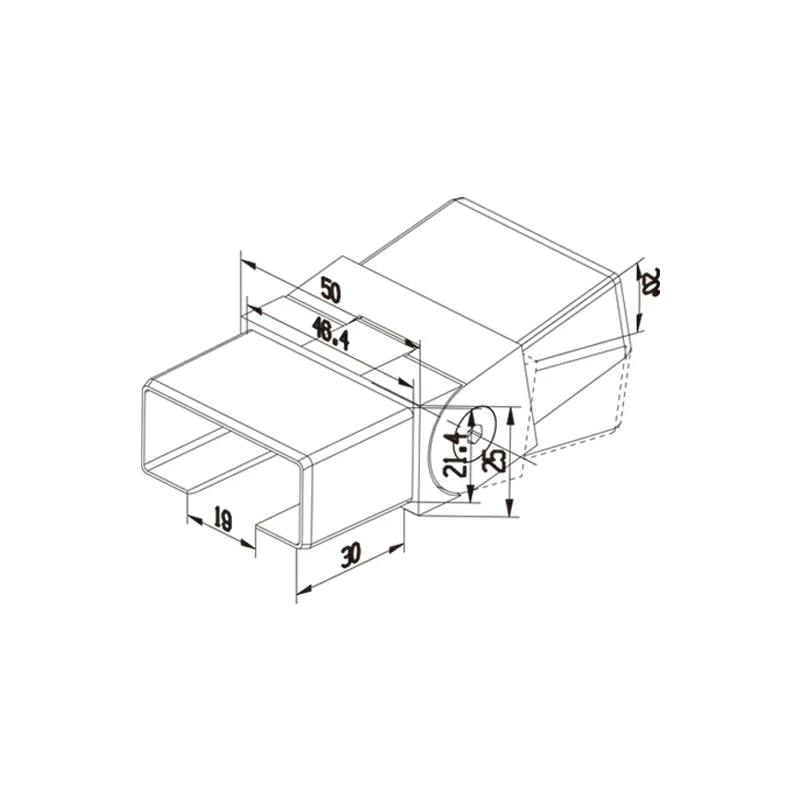

Square top Stainless Steel Adjustable Rail Connector Structure
Square top rail 50mm x 25mm up/down stainless Steel Adjustable Connector Square top Stainless Steel Adjustable Rail Connector Structure

Square Top Rail 50mm x 25mm Up/Down Adjustable Connector

Part No. LS-8141850

Coupling: 50mm*25mm
Weight 0.36Kg
Material 2205/304/316
Application: Handrail fence for various scenes, etc.

Handrail Connector Description

The Square Top Rail Stainless Steel Adjustable Connector is designed to connect two sections of square-shaped railing together at a vertical angle. Its square top to fit a 50mm x 25mm railing, vertical connection, and can be adjusted both up and down, to accommodate variations in railing height.

The square top stainless steel adjustable connector is made of 304, 316, or duplex 2205 stainless steel for its durability, corrosion resistance, and aesthetic appeal, making it suitable for both indoor and outdoor use. These handrail fittings are used to residential railings for staircases, or commercial railings for buildings and public spaces.



Handrail Connector Specifications

Product Name

Square Top Adjustable Rail Connector

Coupling

50mm*25mm

Weight

0.36Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Handrail fence for various scenes, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

These square top stainless steel adjustable connectos are available in different finishes (polished, satin) to suit various environmental requirements. They are designed for provides for easy installation and adjustment, and provide a clean, safe, and attractive appearance for the stair railing system.

Square top Stainless Steel Adjustable Rail Connector Applications
