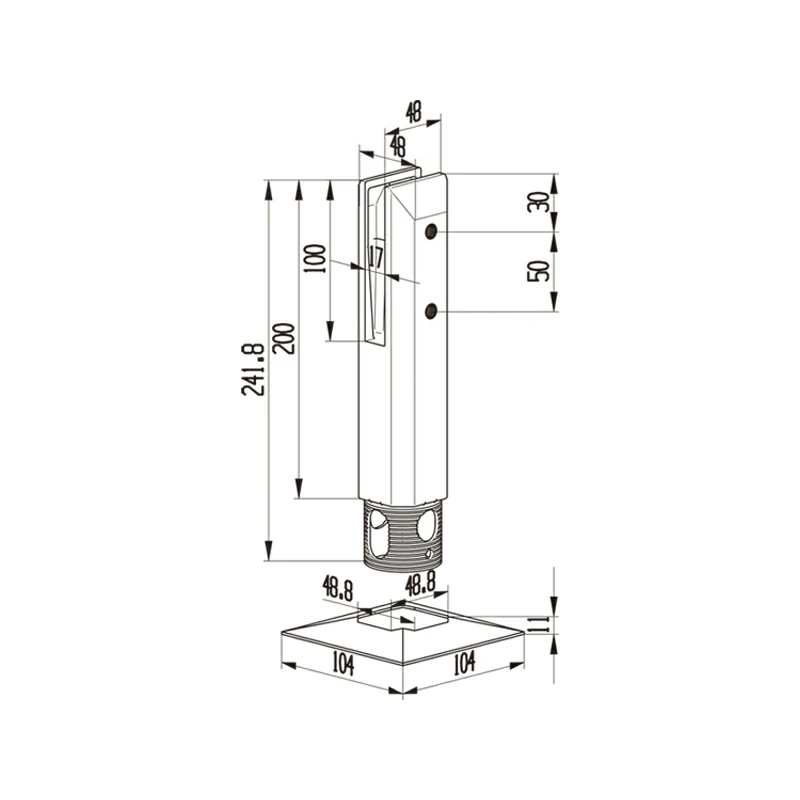

Spigot for Glass Railing 188sc240-sp Structure
Spigot for Glass Railing Spigot for Glass Railing 188sc240-sp Structure

Square Floor-entry Glass Spigot

Part No. 188SC240-SP

Glass Thickness 12mm
Weight 1.20Kg
Outline Dimension 80mm*104mm*104mm
Material

2205/304/316

Application: Pool

Glass Spigot Description

This Square floor-entry glass spigot for railing is used for glass up to 12mm and is suitable for concrete floors and poured concrete floors such as swimming pool fences and garden fences. These Glass Spigots for Railing are designed to securely hold the glass panels in the railing system. They often feature clamps, gaskets, or other mechanisms that provide a stable connection between the spigot and the glass, ensuring a safe and reliable installation.

Spigots for glass railing come in various finishes, such as brushed stainless steel, polished stainless steel, and black, which can complement different décor styles and enhance the visual appeal of the railing system. Glass railing spigots can be used with a variety of glass panel thicknesses and styles, including tempered glass, laminated glass, and patterned glass.

Glass Spigot Specifications

Product Name

Square Floor-entry Glass Spigot

Outline Dimension

80mm*104mm*104mm

Glass Thickness

12mm

Weight

1.20Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Pool/Glass Railing

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Ensure the spigots are compatible with the type of glass panel being used, considering factors like thickness, weight, and edge treatment. These spigots are typically mounted directly into the floor surface using screws or bolts to secure them in place. The installation process may vary depending on the specific design of the spigot and the requirements of the railing system.

This spigot for glass railing is an economical product, which reduces the weight of the product as much as possible and lowers the cost. While ensuring the maximum load-bearing capacity to meet customer needs.
