Shower door hinges are the "safety core and experience key" of frameless shower rooms. We have developed seven product series (H1, H4, H8, H10, H13, H14, H17/H30) with high-quality brass as the unified base material, covering full-scenario requirements ranging from thin glass to thick glass and from lightweight to heavy load-bearing. Although each series has slight differences in parameters and styles, they all inherit the consistent high-quality genes with core advantages throughout, and also include a wealth of practical popular science knowledge about bathroom hardware.
Core Advantages of the Full Series: Brass Empowerment + Scientific Design, Comprehensive Strength
-
Rigid and Durable Material: Why Brass Is the Premium Choice for Shower Hinges?

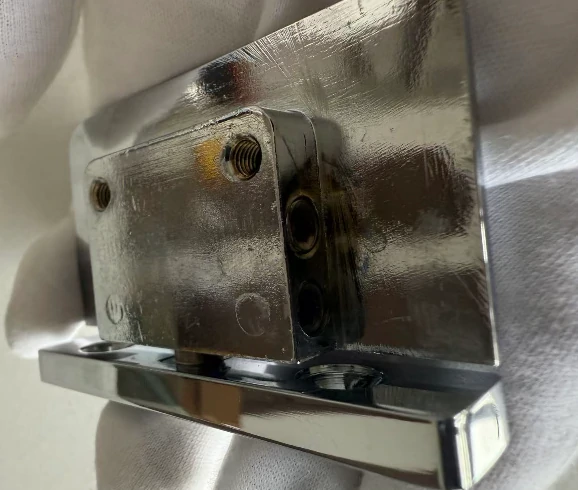

The entire series is integrally formed of high-quality brass, which is the preferred material for bathroom hardware. Brass naturally has a high copper content and can form a dense oxide film on the surface, offering far superior resistance to moisture and corrosion compared to ordinary alloys or carbon steel. It can pass a salt spray test for over 500 hours and will not rust or deform even after long-term use in the high-temperature and high-humidity environment of a bathroom.
Combined with die-casting technology (dimensional tolerance ≤ ±0.03mm), the excellent mechanical properties of brass (tensile strength ≥ 320MPa) are fully utilized: it will not break easily like brittle-hard alloys, nor deform easily like ordinary steel. This ensures that the hinge can still open and close stably after long-term bearing of glass weight, with a service life of more than 10 years—3 to 5 times that of ordinary zinc alloy hinges.
-
Smooth and Quiet Operation: The Technological Logic Behind Quietness

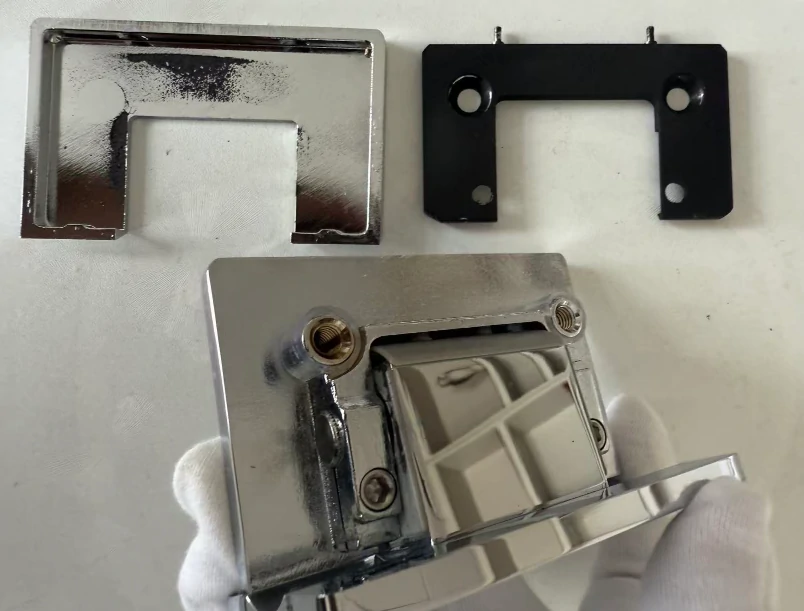

Equipped with high-quality stainless steel bearings, combined with precision grinding of the brass rotating shaft (surface roughness Ra ≤ 0.8μm), the friction coefficient during opening and closing is minimized, and the noise is controlled below 25 decibels (equivalent to a soft whisper), achieving an experience of "easy to push open and slow to close without noise".
The design adheres to ergonomic and practical needs: most models support 0° full closing (to ensure sealing and leakage prevention) and 5° slightly open positioning (to facilitate ventilation and odor removal). Adjustable models can achieve free angle fixation through built-in damping and angle locking structures, adapting to various usage scenarios such as "half-open ventilation" and "full-open entry/exit", and avoiding door rebound or shaking.
-
Full Coverage of Styles and Functions: Practical Value of Segmented Design
Glass Thickness Adaptation Popular Science: Glass thickness directly determines hinge selection—6mm-10mm thin glass is suitable for small-sized lightweight shower rooms, matching the H4/H17 series; 8mm-12mm regular glass is the mainstream choice for home use, compatible with the H1/H8/H13/H14/H30 series; 10mm-12mm thick glass is mostly used in large-size or high-frequency use scenarios, and the H10 series is preferred due to its wider clamping structure and sufficient load-bearing redundancy.
Load-Bearing Grading Logic: Hinge load-bearing must follow the "safety redundancy" principle—the load-bearing capacity of 2 hinges ranges from 25kg (H4 series) to 65kg (H13/H14 series). Ordinary households can choose 30-50kg models; for extra-wide doors (>1m) or thick glass (12mm), 65kg heavy-load models must be selected to avoid fatigue deformation caused by long-term use.
Installation Type Popular Science: According to installation scenarios, it is mainly divided into "wall-mounted hinges (glass-to-wall)" and "glass-to-glass hinges". The two have targeted structural designs and cannot be mixed:

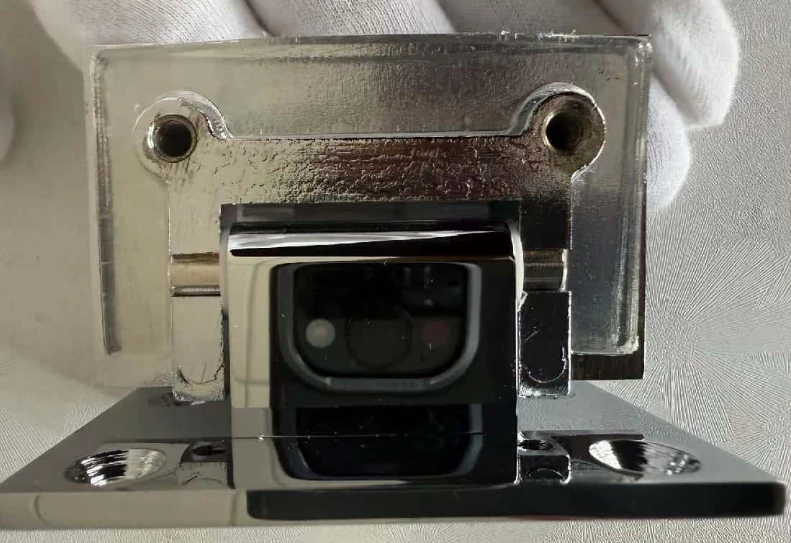

Wall-Mounted Hinges (glass-to-wall): Core for connecting shower door glass to the wall. One side of the hinge is equipped with an expansion fixing base (brass material, suitable for concrete, ceramic tiles and other wall surfaces), which is fixed by pre-embedding or drilling. It can transfer the weight of the glass to the wall to ensure stable installation.
Applicable Scenarios: Single-side wall-mounted shower rooms, right-angle corner wall-mounted installations (corresponding models are available in H1, H4, H10 and other series). During installation, attention should be paid to wall flatness to avoid uneven stress on the hinge due to wall unevenness.
Glass-to-Glass Hinges: Used for direct connection of two pieces of shower glass (without wall support). Therefore, it adopts a "double clamping" structure with glass slots designed on both sides, which are locked and fixed by bolts. The clamping force is uniform, which can effectively disperse the stress at the glass connection and prevent glass breakage. Applicable Scenarios: Corner connection of irregular shower rooms, independent shower screens without wall sides (supported by adjustable models such as H10DA and H14A). When selecting, it is necessary to ensure that the clamping thickness of the hinge fully matches the glass thickness.
Advantages of Segmented Styles:

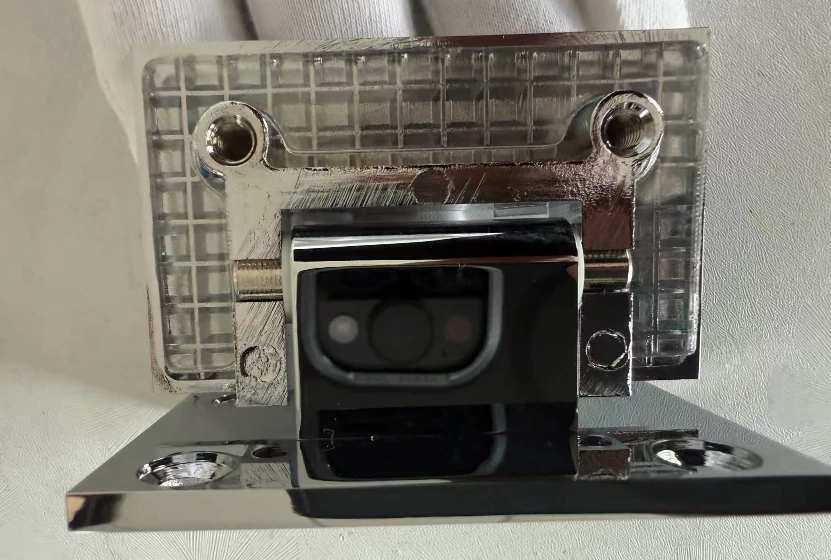

Grid Style: The glass-clamping surface adopts a grid design, which not only reduces brass material usage (lightweight) but also increases the friction coefficient, solving the problem of easy slipping when clamping thin glass;
Solid Style: The glass-clamping surface is a solid flat design with uniform force bearing, suitable for thick glass scenarios requiring high clamping stability;
Rotating Shaft Style: 360° two-way opening and closing, breaking the space limitation of one-way opening and closing, suitable for irregular or small shower rooms;
Covered Style: The protective cover can block moisture, hair and other debris from entering the bearing, solving the common problem of "dirt accumulation and jamming" of bathroom hardware.
-
Both Aesthetics and Practicality: Dual Value of Surface Treatment
It supports a variety of surface treatment customizations, which not only meets aesthetic needs but also has practical significance:
Classic Models (Classic Satin/Mirror): Delicate texture, suitable for most bathroom styles; the mirror model is easy to clean, and the matte model is stain-resistant;
PVD Metal Models (Black/Gold/Rose Gold/Gun Grey): The dense coating formed by vacuum coating technology has twice the wear resistance of ordinary electroplating and is not easy to fade;
Functional Models (Anti-fingerprint/Anti-conductive): The anti-fingerprint coating can reduce fingerprint residues; the anti-conductive model is suitable for public places with safety protection needs (such as hotels, apartments);
Matte Black/White Models: Adopt powder coating technology, which is scratch-resistant and corrosion-resistant, perfectly matching industrial style and minimalist style bathroom designs.
Core Differences of Each Series: Precisely Adapting to Different Scenarios
H1/H8 Series: Classic basic models with balanced parameters (8mm-12mm glass, 2 hinges bearing 36kg), including both wall-mounted and glass-to-glass installation styles. No complex functions, outstanding cost performance, making it a "no-brainer choice" for regular shower rooms in ordinary households;

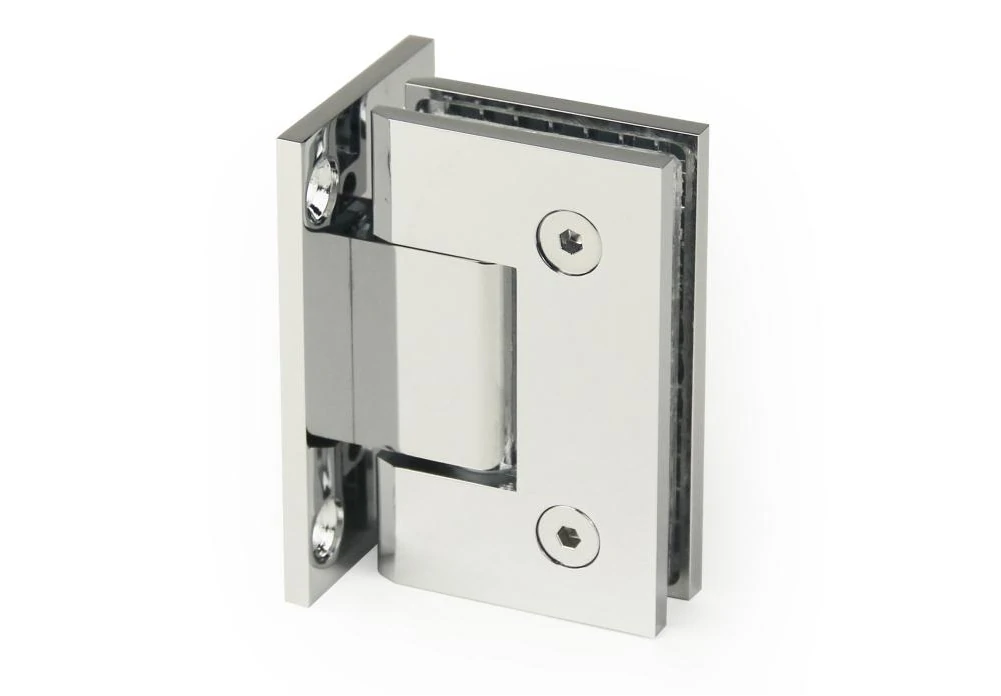

H4 Series: Lightweight models, suitable for 6mm-10mm thin glass (2 hinges bearing 25kg), covering wall-mounted, glass-to-glass and rotating shaft models, with grid and solid subdivisions. Focus on "compact and space-saving", suitable for small-sized or mini shower rooms;

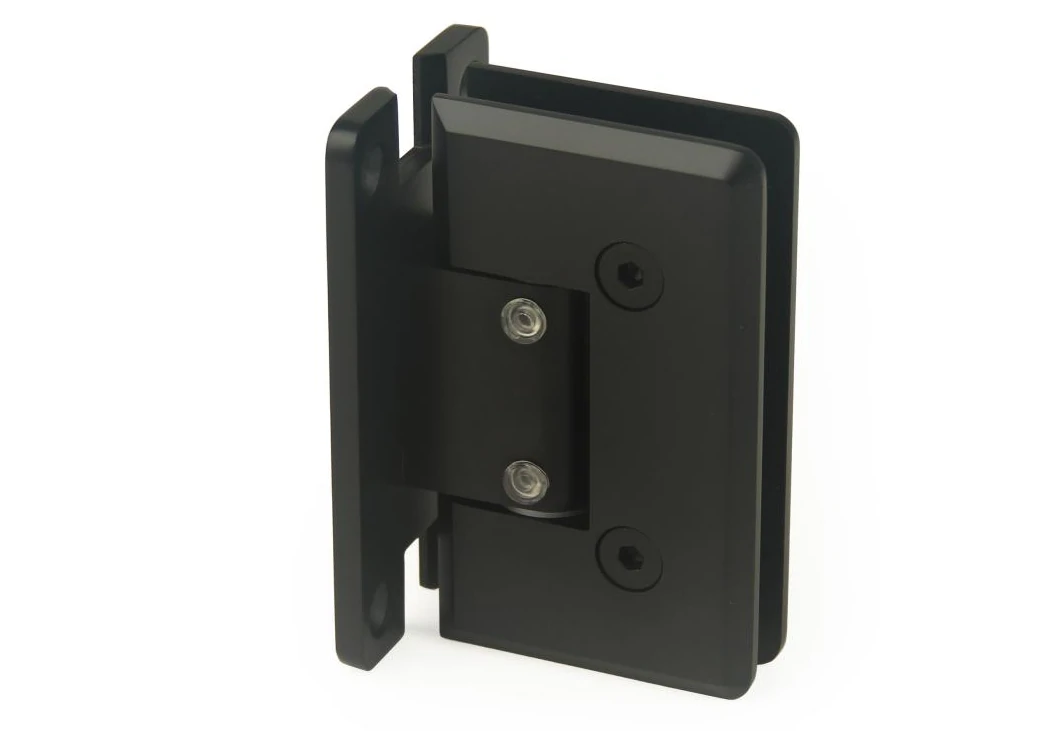

H10 Series: High-load and multi-functional models, focusing on 10mm-12mm thick glass (2 hinges bearing 50kg). It has the most abundant styles, covering full functions such as wall-mounted/glass-to-glass installation, adjustable, grid, and covered, making it the first choice for customized and large-size shower rooms;

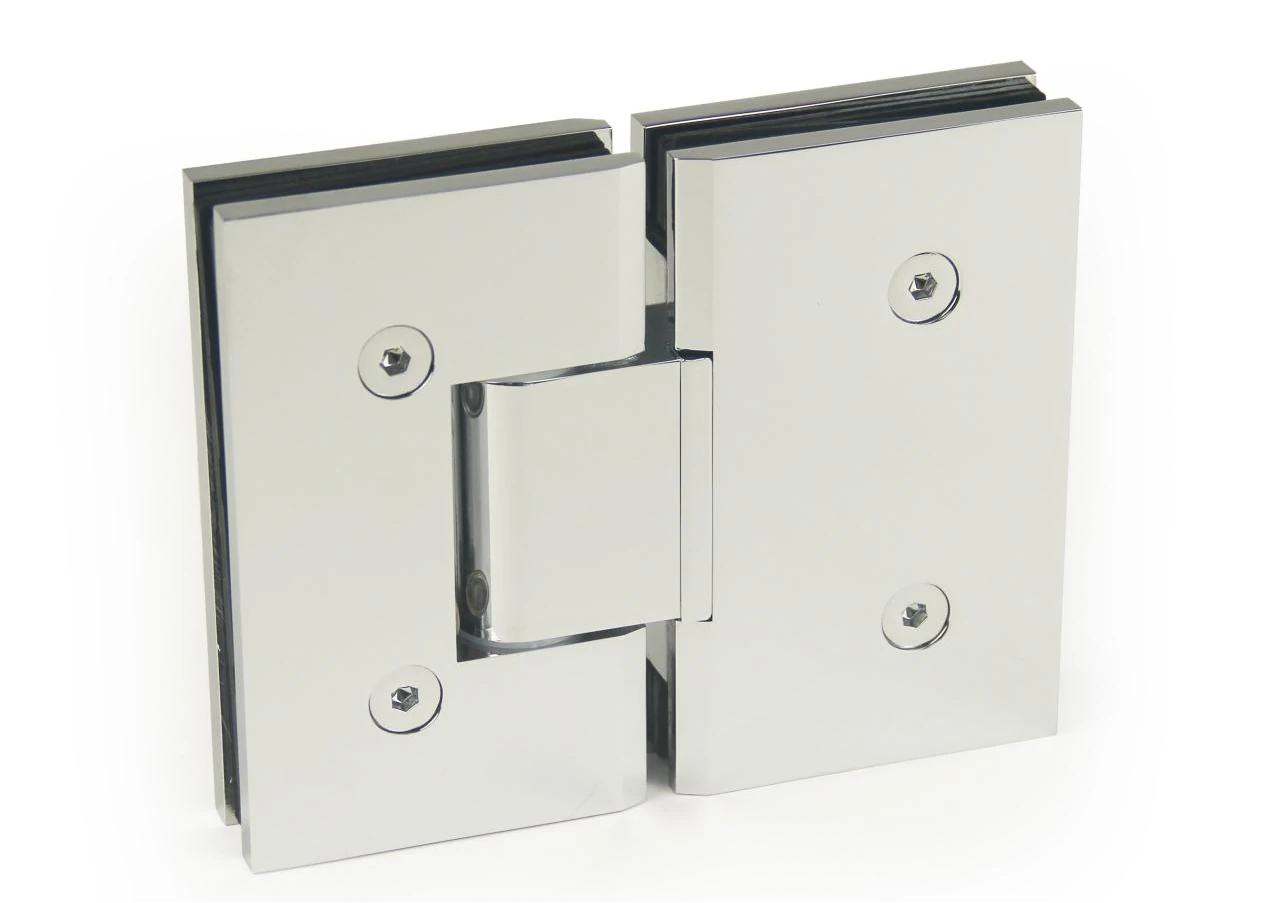

H13 Series: Heavy-load best-selling models, universal for 8mm-12mm glass, with 2 hinges bearing up to 65kg. Mainly wall-mounted installation models, no need to add extra hinges, simple installation, suitable for large shower rooms with extra-wide and extra-thick glass;

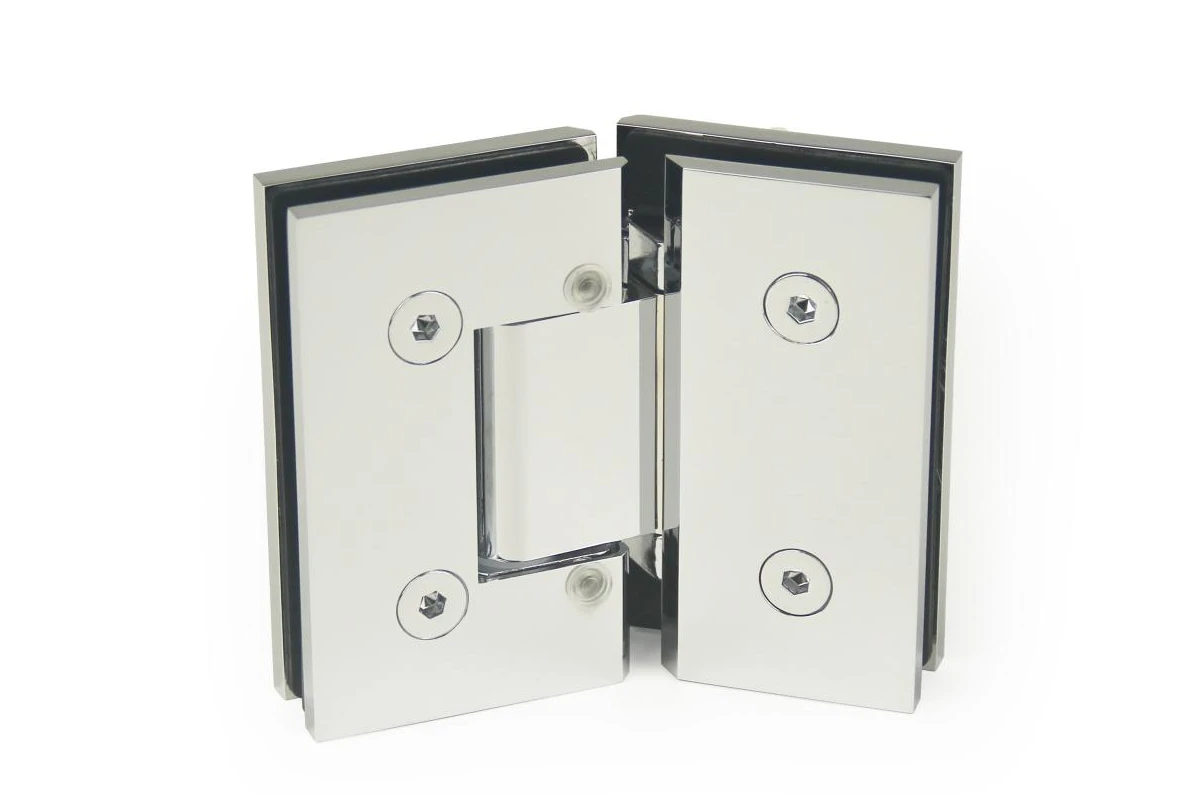

H14 Series: Heavy-load + flexible models, with the same load-bearing capacity as H13 (65kg for 2 hinges), covering wall-mounted/glass-to-glass installation, adding adjustable and covered models, balancing stability and flexibility, suitable for high-end customized bathrooms or high-frequency use scenarios (such as hotels);

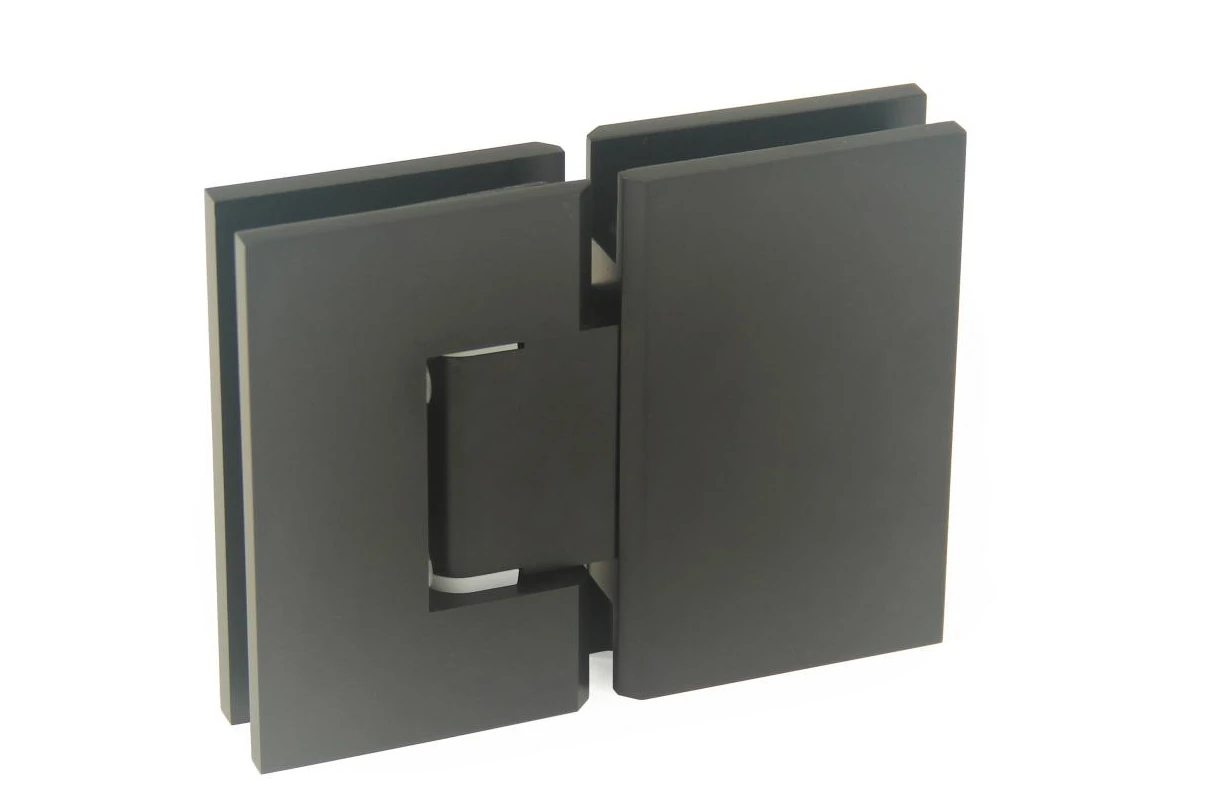

H17/H30 Series: Lightweight and flexible models. H17 is suitable for 6mm-10mm glass (30kg for 2 hinges), and H30 is suitable for 8mm-12mm glass (45kg for 2 hinges). Both support wall-mounted/glass-to-glass installation and free angle adjustment, with outstanding cost performance, suitable for families pursuing flexible operation.
Selection Popular Science: Avoid Common Misunderstandings
- Misunderstanding:The thicker the glass, the more hinges needed—Correct Logic: The number of hinges should match the load-bearing capacity. For example, for 12mm thick glass (single door weight about 40kg), 2 H10 series hinges with 50kg load-bearing capacity are sufficient, no need for extra hinges;
- Misunderstanding: The brighter the surface, the better—Correct Logic: Surface treatment should balance style and scenario. For public places, anti-fingerprint or matte models are preferred; for home use, you can choose according to the decoration style. The key is to check the coating adhesion (simply judged by "no peeling when scratched with nails");
- Misunderstanding:All hinges are universal—Correct Logic: Corresponding models must be selected according to the installation scenario. Wall-mounted hinges are used for glass-to-wall connection, and special double-clamping hinges are used for glass-to-glass connection. Mixing will lead to unstable connection and potential safety hazards;
- Misunderstanding:Wall-mounted hinges can be installed randomly—Correct Logic: Wall-mounted hinges must be fixed on solid walls (such as concrete walls). For hollow bricks or lightweight partition walls, load-bearing brackets must be pre-embedded in advance, otherwise, they cannot bear the weight of the glass.
Conclusion
The seven series of shower door hinges introduced this time are based on "high-quality brass" as the core foundation. Relying on die-casting technology, scientific functional design and rich style segmentation, they have built a full-scenario adaptation system covering "thin glass to thick glass, lightweight to heavy load-bearing, basic models to customized models, and wall-mounted to glass-to-glass". Its core value lies in: it not only builds the durability, stability and quiet experience required for bathroom hardware through brass material and die-casting technology but also precisely matches shower room scenarios of different house types and usage needs through differentiated series design and targeted installation type division—whether it is regular decoration of ordinary households, space optimization of small-sized apartments, or customized needs of high-end places, a suitable solution can be found.
At the same time, the series of products balance aesthetics and practicality. The diverse surface treatments can integrate into various bathroom styles, making the hinge not only a "functional core" to ensure safety but also a "detail highlight" to enhance the space texture. When selecting, you only need to focus on the four core dimensions of glass thickness, load-bearing requirements, installation scenario (wall-mounted/glass-to-glass) and functional preferences, avoid common misunderstandings, and quickly lock in the suitable style, making the use experience of the shower door safer and smoother.
If you need precise suggestions on the number of hinges and style matching for specific shower room sizes (such as extra-wide doors), glass thickness or functional requirements, please feel free to contact us!
