Home Shower Hardware Glass Shower Door Hinge
Square Shower Hinge Wall to Glass

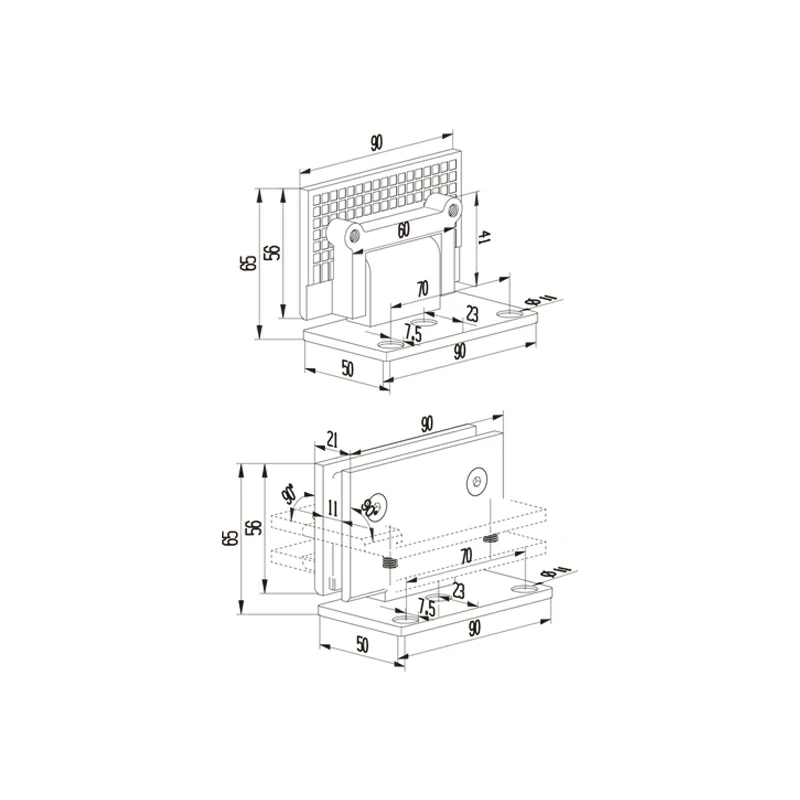

Shower Hinge Wall to Glass Structure
Square Shower Hinge Wall to Glass Shower Hinge Wall to Glass Structure

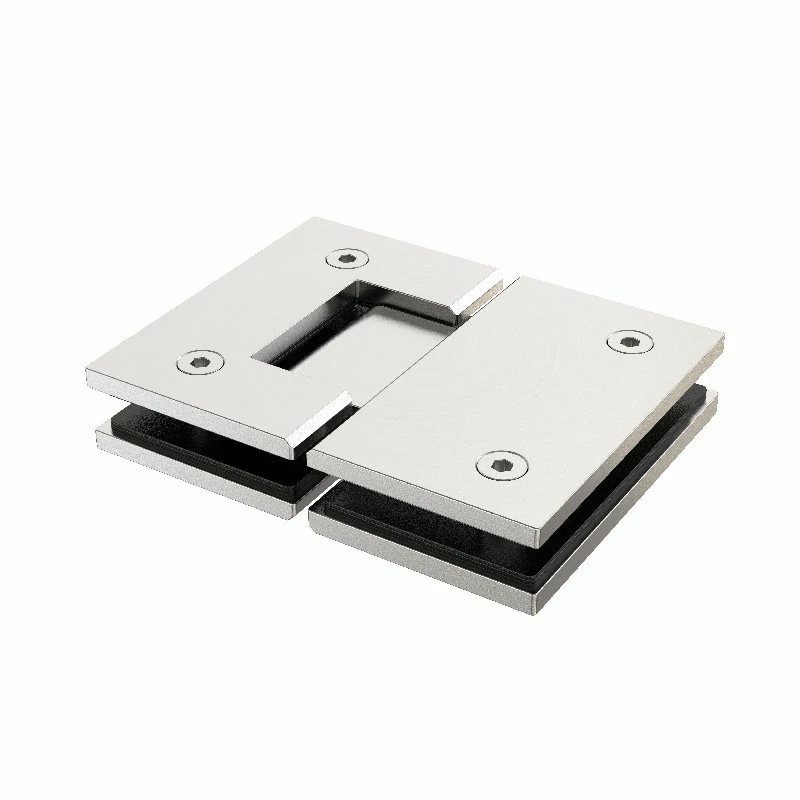

Glass Shower Door Hinge

Part No. SHC-90LM

Glass Thickness 8-10mm
Weight 0.7Kg
Outline Dimension 90mm*50mm*65mm
Material 2205/304/316
Application: Shower Room / Frameless Shower Glass / Glass Hinge

Shower Door Hinges Description

Shower Hinge Wall to Glass is used in shower enclosures to connect a glass shower door or panel to a wall, it is a specific type of hinge used in frameless shower door systems. These hinges are designed to allow the shower door or panel to pivot smoothly, enabling easy access to the shower enclosure. The glass shower door hinge is suitable for 8-10MM glass, and provide stability and support to the glass component.

This Shower Hinge Wall to Glass has a square-shaped base plate with screws that secure it to the wall, while the other side of the hinge attaches to the glass door or panel. They are made of stainless steel for durability and corrosion resistance.



Shower Door Hinges Specifications

Product Name

Shower Hinge

Outline Dimension

90mm*50mm*65mm

Glass Thickness

8-10mm

Weight

0.7Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Stair railing, Balcony, Handrail, Balustrade

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

When selecting a square stainless steel shower hinge wall to glass, it is important to consider the weight and thickness of the glass, as well as the specific dimensions and design of the shower enclosure. Square shower door hinges are available in various finishes to match your bathroom hardware.

Wall to Glass Shower Hinge
