Shower Hinge Description
Glass-to-glass shower hinge 90 degree is a specific type of hinge designed for frameless shower door applications. This hinge is designed to connect two glass panels directly, the "90 degree" specification refers to the maximum opening angle of the hinge. It allows the glass door panel(s) to swing open and closed smoothly while providing a clean and modern aesthetic for your bathroom.
The shower hinge is made from stainless steel, ensures durability and resistance to corrosion, making it suitable for the moist and humid environment of a bathroom. The hinge is designed to be installed directly onto the glass surface, creating a seamless and modern look without the need for additional brackets or hardware.
Shower Hinge Specifications
|
Product Name |
Shower Hinges |
|

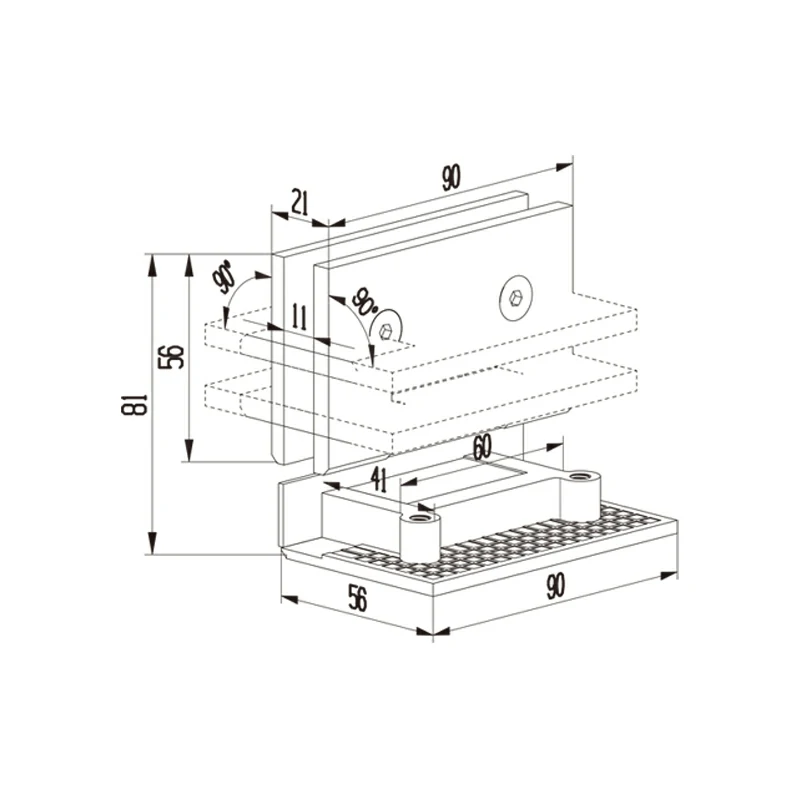

Outline Dimension |
90mm*56mm*81mm |
|
Glass Thickness |
8-10mm |
|
Weight |
1.2Kg |
|
Finish |
Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary) Anti-conductive Black/White Transparent Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Stair railing, Balcony, Handrail, Balustrade |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
When installing a stainless steel glass-to-glass shower hinge at a 90-degree angle, precise measurement and cutting of the glass panels are essential to ensure a proper fit. Ensure the hinge is rated for the weight and thickness of your specific glass shower door panels. Exceeding the weight rating can compromise safety and functionality.
