Frameless Glass Hinges

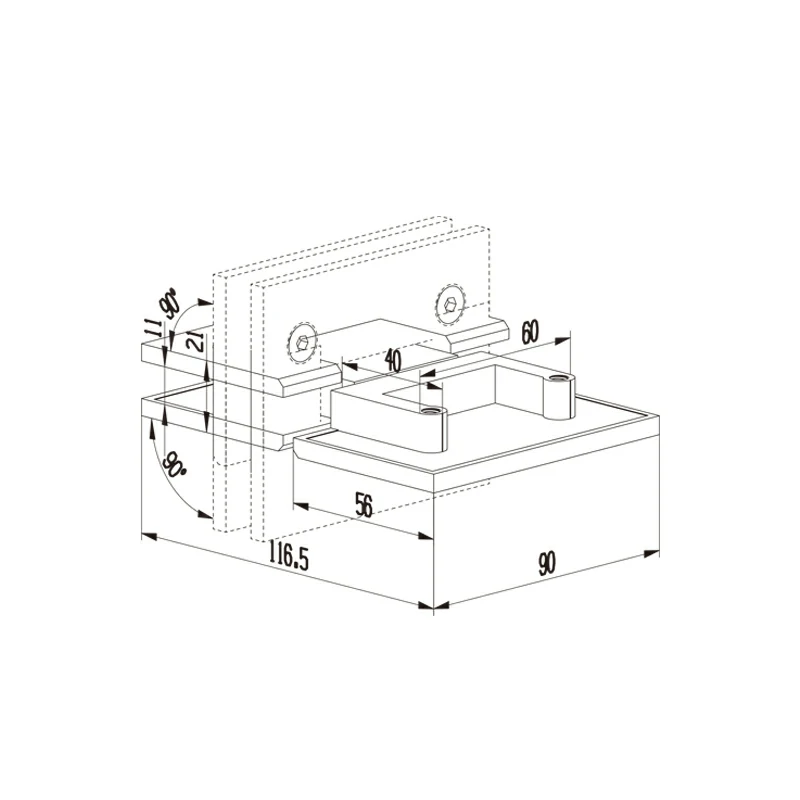

Frameless Glass Hinges Structure
Frameless Glass Hinges Frameless Glass Hinges Structure

Shower Hinges

Part No. SHC-180M

Glass Thickness 8-10mm
Weight 1.13Kg
Outline Dimension 90mm*56mm*116.5mm
Material 2205/304/316
Application: Shower Room / Frameless Shower Glass / Glass Hinge

Shower Hinges Description

Frameless glass hinges is suitable for 8-10MM glass and plays a key role in the installation of shower doors. These shower hinges typically feature a sophisticated design that allows the glass door to swing open and close smoothly while maintaining stability and security. They are available in various styles and configurations to accommodate different types of frameless glass installations.

Frameless glass hinges are specially designed hinges used in the installation of frameless glass doors or panels. These hinges are engineered to provide a sleek and minimalist look, as they are designed to be mounted directly onto the glass without the need for a frame or surrounding structure.

Shower Hinges Specifications

Product Name

Shower Hinges

Outline Dimension


Glass Thickness





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary)
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex stainless steel 2205, Stainless steel 304/316


Stair railing, Balcony, Handrail, Balustrade

Casting Process

Silica Sol Technics with Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Frameless glass hinges is suitable for shower doors and provides solid support for smooth opening and closing of shower doors with strong resistance to moisture and corrosion. They are commonly used in modern architectural and interior design, particularly in applications where a clean, seamless appearance is desired.

Frameless hinges are generally easy to install and maintain, requiring minimal tools and expertise. They are often designed with self-closing mechanisms and adjustable features for precise alignment and smooth operation.

Frameless Glass Hinges Application
