Frameless Glass Door Hinges

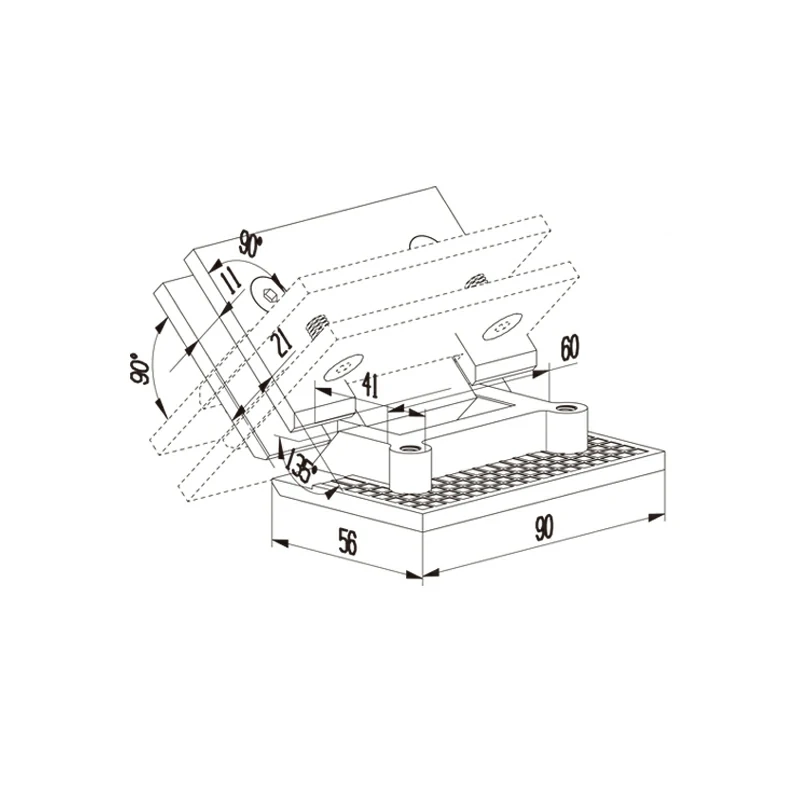

Frameless Glass Door Hinges Structure
Frameless Glass Door Hinges Frameless Glass Door Hinges Structure

Shower Hinges

Part No. SHC-135M

Glass Thickness 8-10mm
Weight 1.15Kg
Outline Dimension 90mm*56mm*60mm
Material 2205/304/316
Application: Shower Room / Frameless Shower Glass / Glass Hinge

Shower Hinges Description

Frameless glass door hinges are specialized shower hardware components designed to attach and support frameless glass doors in various applications, such as shower enclosures, interior doors, and display cases. These hinges are engineered to provide a pivot point for the frameless glass door to swing open and closed, and they are specifically designed to accommodate the weight and size of glass panels. Frameless glass door hinges come in different styles and finishes to suit different design preferences and are typically made of stainless steel to ensure durability and resistance to moisture. These hinges are crucial for the functionality and aesthetic appeal of frameless glass doors, providing both support and a sleek, minimalist look.


Shower Hinges Specifications

Product Name

Shower Hinges

Outline Dimension


Glass Thickness





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary)
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex stainless steel 2205, Stainless steel 304/316


Stair railing, Balcony, Handrail, Balustrade

Casting Process

Silica Sol Technics with Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



These hinges is suitable for 8-10MM glass and plays a key role in the installation of shower doors, known for its superior design and durability, while focusing on aesthetic details to make your bathroom more stylish and comfortable.

These hinges is suitable for shower doors and provides solid support for smooth opening and closing of shower doors with strong resistance to moisture and corrosion.

Frameless Glass Door Hinges Application
