Stainless Steel Galss to Glass 180 Degree Glass Door Hinge
180 Degree Glass Door Hinge
Stainless Steel Galss to Glass 180 Degree Glass Door Hinge 180 Degree Glass Door Hinge

Shower Hinge Glass to Glass

Part No. SHC-180S

Glass Thickness 8-10mm
Weight 1.16Kg

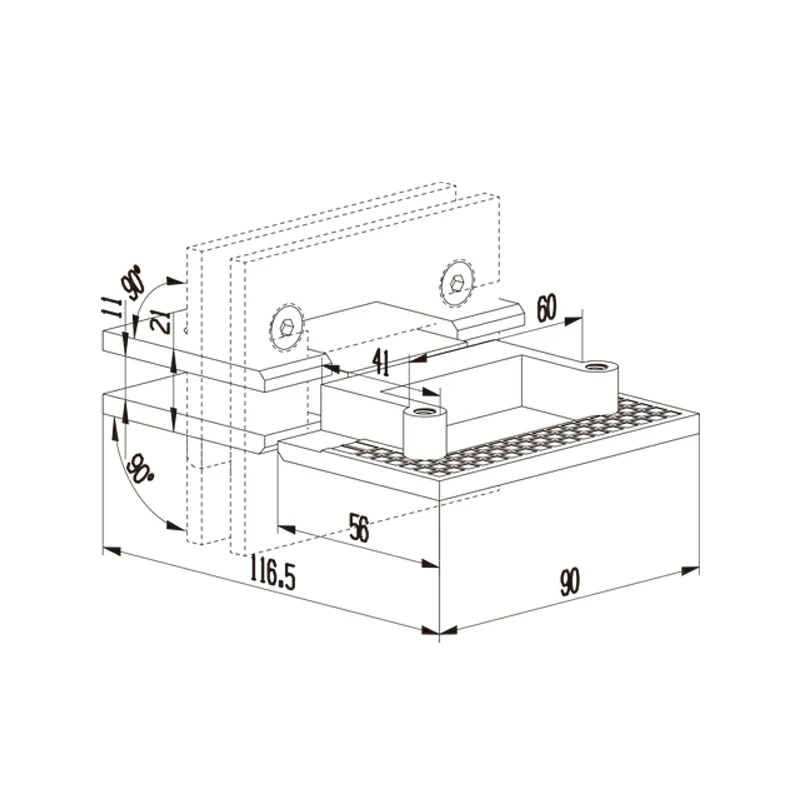

Outline Dimension 90mm*21mm*116.5mm
Material 2205/304/316
Application: Shower Room / Frameless Shower Glass / Glass Hinge

Shower Hinge Description

The glass door hinge is designed for glass-to-glass installation. It offers a 180 degree range of motion, allowing the door to swing open and close fully. This eliminates the need for a door frame, creating a clean and modern aesthetic for your doorway. These shower door hinges are available in various designs, and sizes, and they contribute to the overall functionality and aesthetic appeal of frameless glass shower enclosures.

The 180-degree glass door hinge is made of stainless steel, which provides durability, strength, and resistance to corrosion and rust. Use mild cleaning solutions and avoid harsh abrasives when cleaning the hinges and glass panels. This will help preserve the longevity of the hardware and prevent scratches or damage to the glass.



Shower Hinge Specifications

Product Name

Shower Hinges

Outline Dimension

90mm*21mm*116.5mm

Glass Thickness

8-10mm

Weight

1.16Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Stair railing, Balcony, Handrail, Balustrade

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Ensure the 180-degree glass door hinge is compatible with the thickness and type of glass used in your door. Ensure that the hinges are installed correctly and securely to support the weight of the glass panel. Improper installation could lead to the glass panel becoming loose or falling, posing a safety hazard.

Regularly inspect the hinges for signs of wear or damage. If any issues are detected, replace the hinges promptly to maintain the integrity of the shower enclosure.

Stainless Steel Shower Glass Door Hinge Application
