Home Glass Railing Brackets Handrail Support Bracket
Railing Support
Railing Support Structure
Railing Support Railing Support Structure

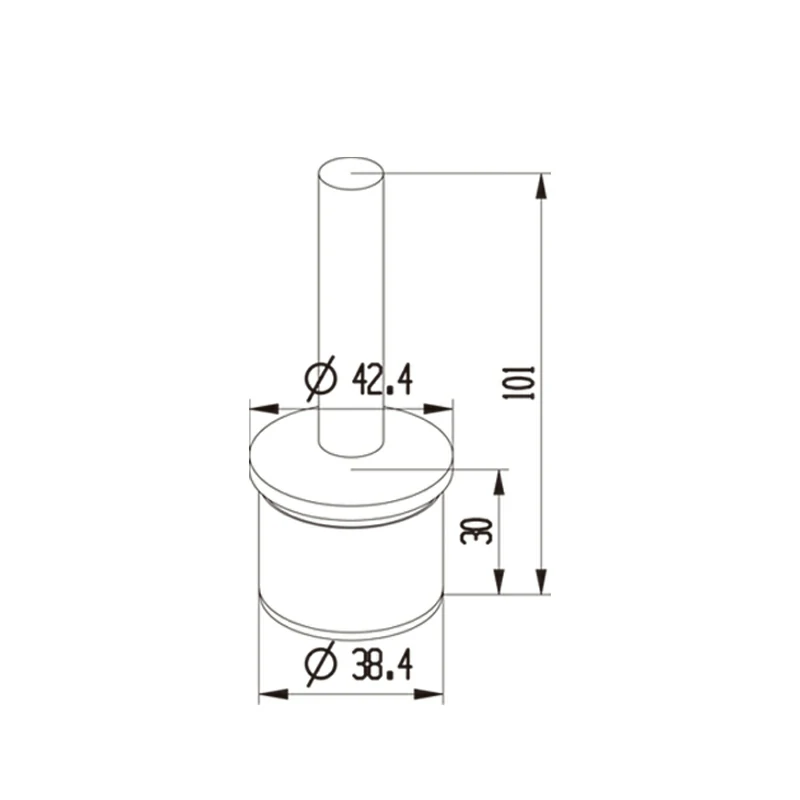

Handrail Support Bracket

Part No. LS-SHC-1

Coupling: Φ42.4mm
Weight 0.18Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Support Description

Stainless steel railing support bracket is a specific type of component used in the installation of stainless steel railings. These brackets are designed to provide support and stability to the railing system by connecting the railing to the underlying structure, such as a wall, post, or floor. These brackets help distribute the weight and stress of the railing along the support structure, ensuring stability and safety for users. Stainless steel railing support brackets come in a variety of designs to accommodate different railing configurations and installation requirements.

Handrail Support Specifications

Product Name

Handrail Bracket

Coupling

Φ42.4mm

Weight

0.18Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Stainless steel railing support brackets are typically installed by attaching them securely to the support structure using screws, bolts, or other fasteners. Proper installation is essential to ensure the brackets can effectively support the weight of the railing and withstand daily use without compromising safety.

When selecting stainless steel railing brackets, it is important to ensure compatibility with the specific railing system being installed. Brackets may vary in size, shape, and mounting options, so choosing the right bracket that fits the railing design and installation requirements is crucial for a successful installation. Regularly check the connection parts for any looseness or abnormality and adjust or reinstall if necessary.
