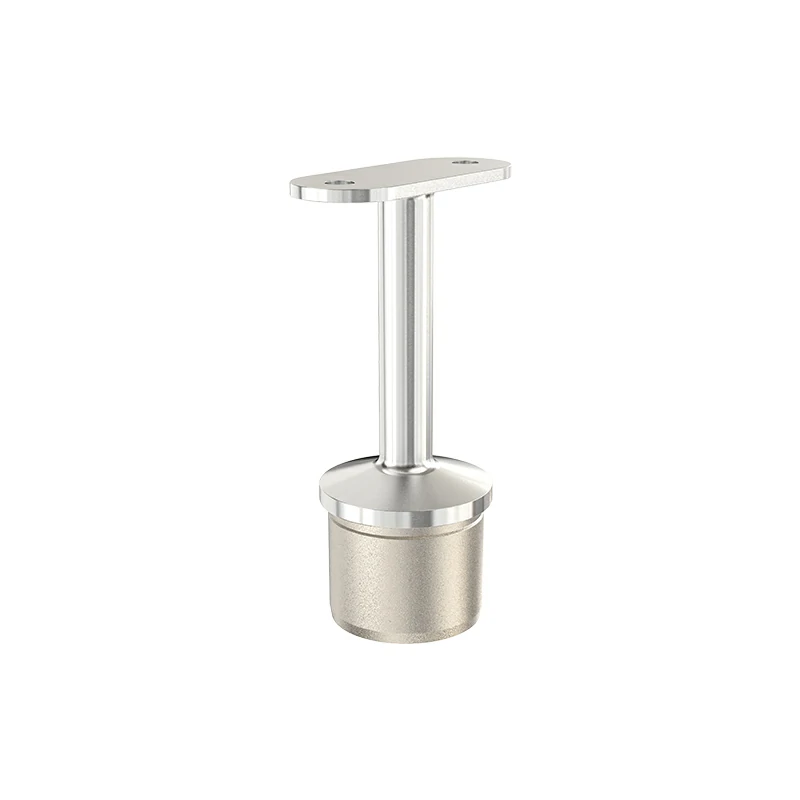

Railing Support Bracket

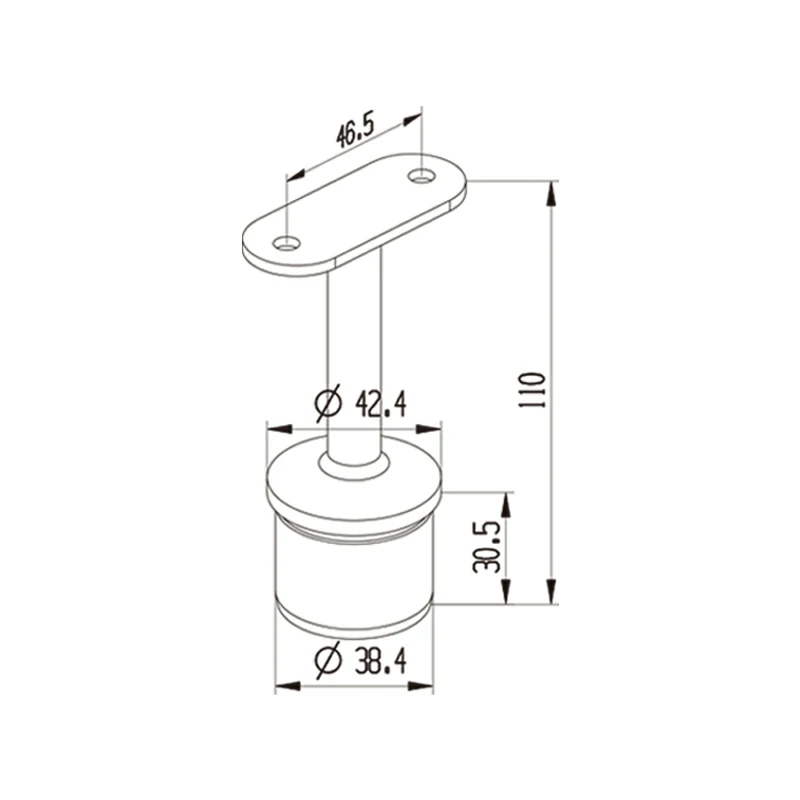

Railing Support Bracket Structure
Railing Support Bracket Railing Support Bracket Structure

Handrail Support Bracket

Part No. LS-SHB-3

Coupling: ∅42.4mm
Weight 0.18Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Support Description

Stainless Steel Railing Support Bracket is a crucial component for securely mounting handrails to walls, posts, or other vertical surfaces. These handrail brackets consist of a base plate that is attached to the surface, a vertical post or rod that supports the railing, and additional fittings or components to secure the railing in place. Stainless steel railing support brackets are commonly used in applications such as staircases, balconies, decks, and walkways to provide safety and support while enhancing the overall aesthetics of the space.

Railing support brackets come in various designs and configurations to accommodate different railing styles and installation requirements. These brackets are made of stainless steel due to its durability, corrosion resistance, and aesthetic appeal, making them suitable for both interior and exterior applications.

Handrail Support Specifications

Product Name

Handrail Bracket






Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex stainless steel 2205, Stainless steel 304/316


Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Casting Process

Silica Sol Technics with Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



The installation of Stainless Steel Railing Support Brackets involves attaching the brackets to the wall, post, or other surfaces using appropriate screws or fasteners. The railing is then mounted onto the brackets, ensuring a secure and stable connection.

It is important to ensure that the Stainless Steel Railing Support Brackets are compatible with the specific railing being used. Brackets come in different sizes, finishes and configurations to accommodate various railing dimensions and installation needs. Periodic inspections for any signs of wear, corrosion, or loosening of connections are recommended to maintain the integrity of the railing support system.
