Home Glass Railing Handrail Handrail Right Angle Connector

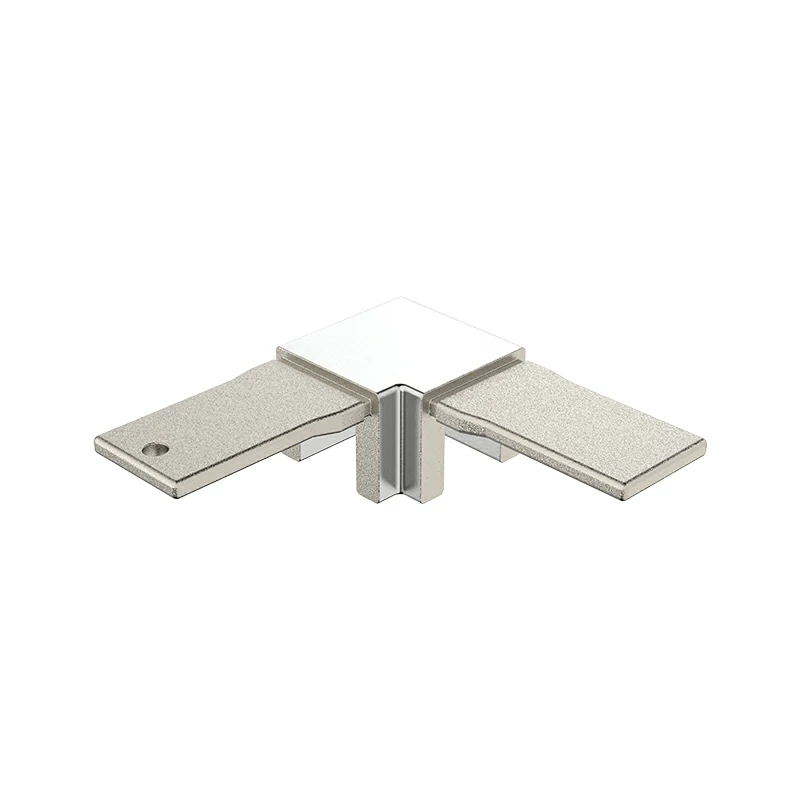

Handrail Right Angle Connector

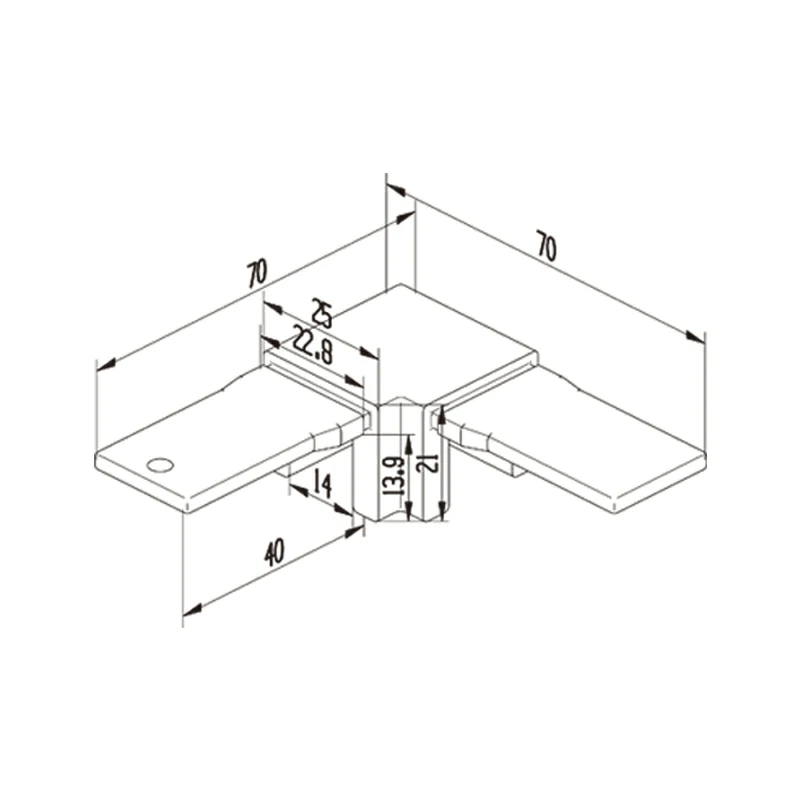

Handrail Right Angle Connector Structure
Handrail Right Angle Connector Handrail Right Angle Connector Structure

Handrail Right Angle Connector

Part No. LS-NTR-S90

Coupling: 21mm*25mm
Weight 0.14Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Connector Description

Stainless Steel Handrail Right Angle Connector is a specialized component used in handrail systems to join handrail sections at a right angle, typically forming corners or turns in the handrail layout. Handrail Right Angle Connectors are engineered to provide a secure and seamless connection between the handrail sections, ensuring a strong and stable joint at the corner or turn of the handrail layout.

Handrail fittings can be of various shapes and sizes and are used to connect different parts of a handrail to ensure a solid structure and safety. These connectors can be simple sleeves, T-connectors, corner connectors or other shapes, depending on the design and installation requirements.



Handrail Connector Specifications

Product Name

Handrail Tee Connector

Coupling

21mm*25mm

Weight

0.14Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Installing Right Angle Connector involves aligning the two handrail sections at a 90-degree angle and attaching the connector securely to join them. This can be achieved using screws, bolts, welding, or other appropriate fastening methods, depending on the specific design and installation requirements.

Handrail Connectors are designed to be durable and long-lasting, capable of withstanding regular use and exposure to environmental elements. Their corrosion-resistant properties make them ideal for both indoor and outdoor applications, ensuring a secure and maintenance-free connection at right angles in the handrail system.
