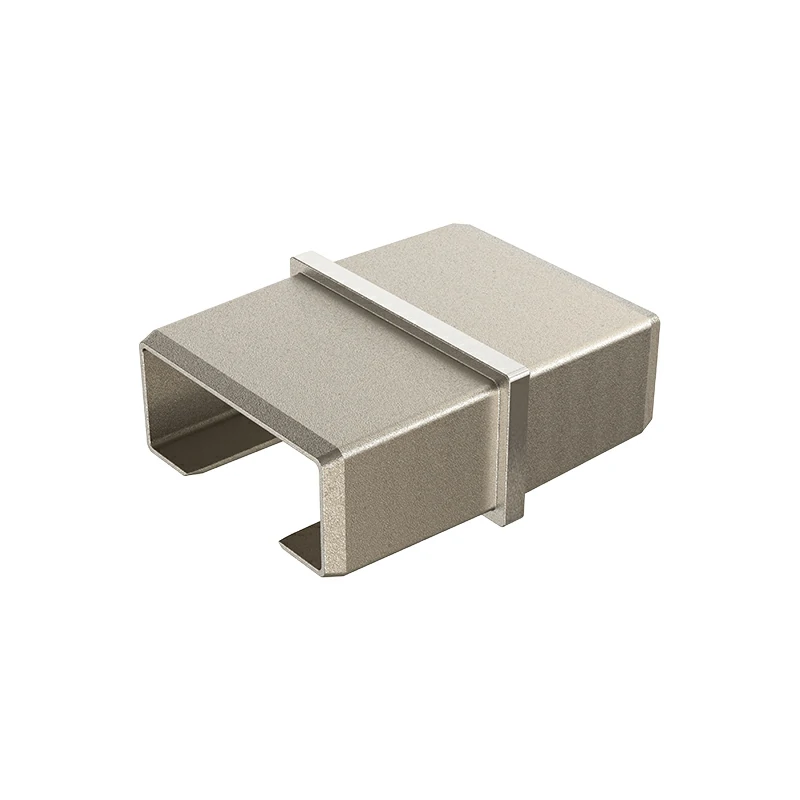

Handrail Rectangular Connector

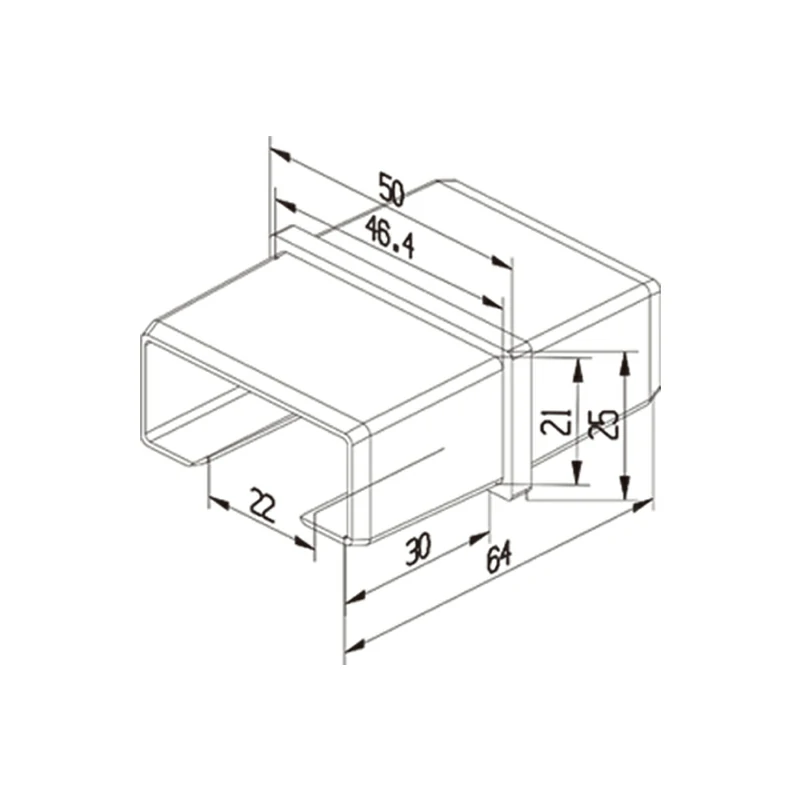

Handrail Rectangular Connector Structure
Handrail Rectangular Connector Handrail Rectangular Connector Structure

Handrail Connector

Part No. LS-8141250

Coupling: 50mm*25mm
Weight 0.13Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Connector Description

This handrail rectangular connector is designed to join two rectangular handrail tubes at a joint, allowing for a secure and stable connection between the two sections of the handrail. It helps maintain the alignment and strength of the handrail system. Stainless Steel Handrail Rectangular Connector also contributes to the overall aesthetic of the handrail system. These handrail fittings come in different sizes to accommodate various rectangular tube dimensions commonly used in handrail systems.



Handrail Connector Specifications

Product Name

Handrail Tee Connector

Coupling

50mm*25mm

Weight

0.13Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Stainless Steel Handrail Rectangular Connectors are commonly used in architectural projects where rectangular handrail tubes are employed, such as in contemporary or modern designs for staircases, balconies, terraces, and other areas requiring handrails.

The connector is installed by attaching it to the ends of the rectangular handrail tubes and securing them in place using screws or other fastening methods. Proper installation is crucial for the stability and safety of the handrail system.
