Stand Off Glass
Stand Off Glass Structure
Stand Off Glass Stand Off Glass Structure

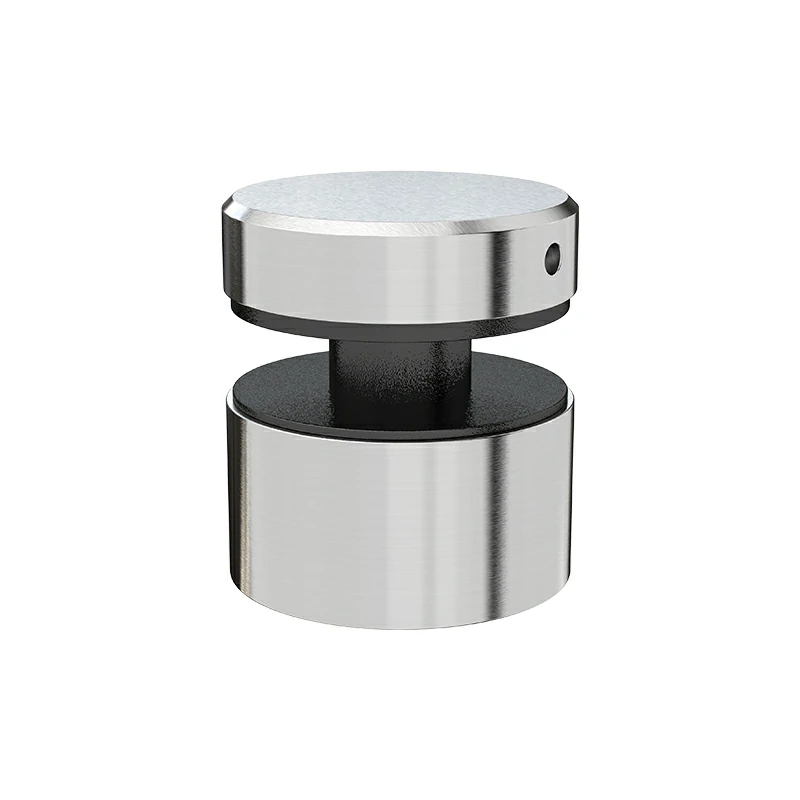

Glass Standoff

Part No. STDC-5

Glass Thickness 8mm
Weight 0.41Kg

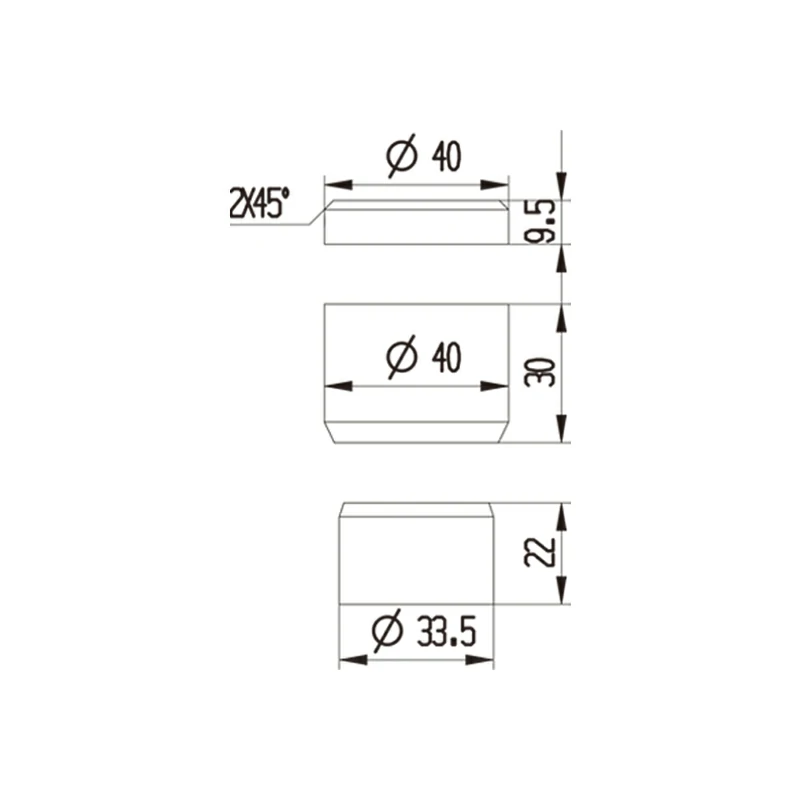

Outline Dimension
Material 2205/304/316
Application: Stair railing/Balcony/Handrail/Balustrade

Glass Standoff Description

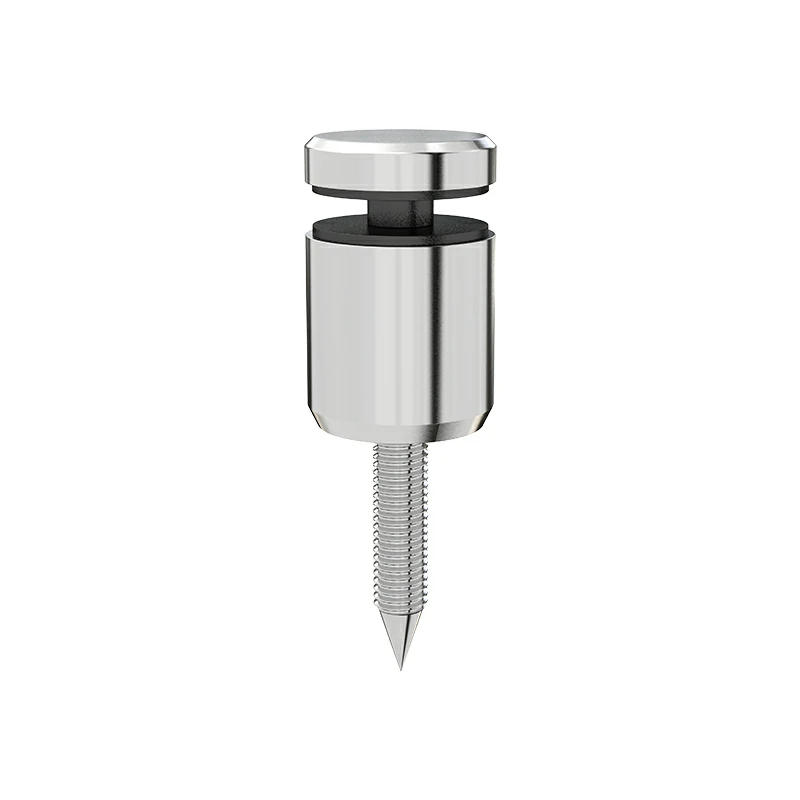

Stainless Steel Glass Stand Off specifically designed to securely mount glass panels away from walls or vertical surfaces. The glass standoff consist of a threaded rod or stud that is attached to the mounting surface, a decorative cap that covers the exposed end of the rod, and sometimes a washer or spacer to provide additional support. The glass panel is drilled with corresponding holes that align with the standoffs, allowing the glass to be securely mounted in place. They offer a modern and minimalist aesthetic, creating the illusion that the glass is "floating" on the wall.

This glass standoff is suitable for fixing 8mm glass, this is a solid model, excellent load-bearing effect. Stand off Glass can be used in a variety of applications, both indoor and outdoor. These glass standoffs are compatible with a variety of glass panel types, including tempered glass, laminated glass, and patterned glass.

Glass Standoff Specifications

Product Name

Stand-off

Outline Dimension



Glass Thickness

8mm

Weight

0.41Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror
We can do anti-fingerprint if necessary

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Stair railing, Balcony, Handrail, Balustrade

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Stainless Steel Stand Off Glass Package

Note

These standoffs are made of high-quality stainless steel due to its durability, corrosion resistance, and aesthetic appeal. Smooth stainless steel surface and clamping mechanism (if used) are easy to clean and maintain.

Glass Standoff is a safe and secure way to mount glass panels. The standoffs help to prevent the glass from wobbling or loosening, and they also provide a buffer between the glass and the mounting surface, which can help to prevent damage to the glass. This design can be used to create suspended glass walls, handrails, partitions or other decorative glass structures.

Standoffs Glass Application
