ABOUT ALEADER
ABUIABACGAAgsabG8wUozJLo1QUwoAY48AM

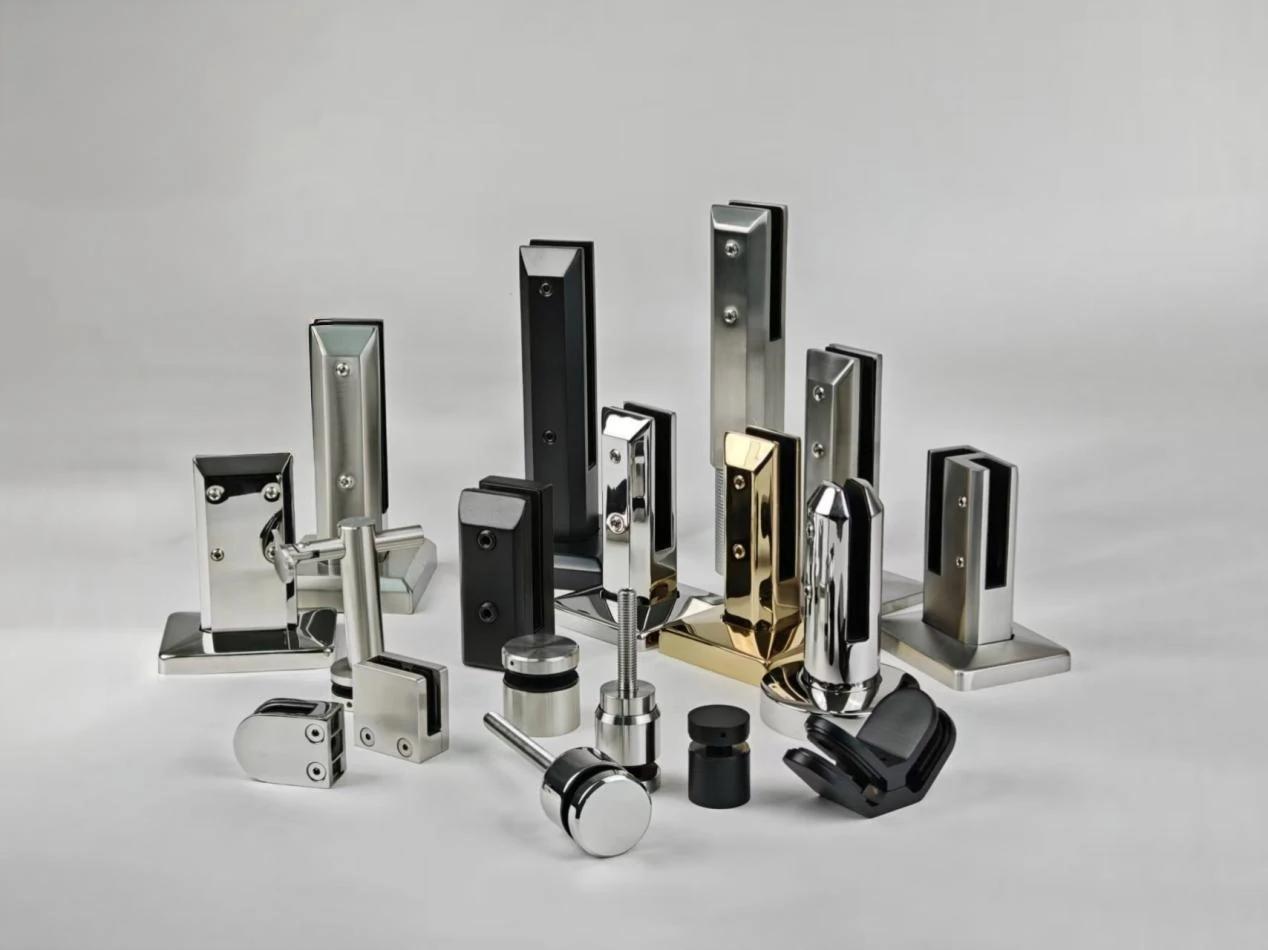

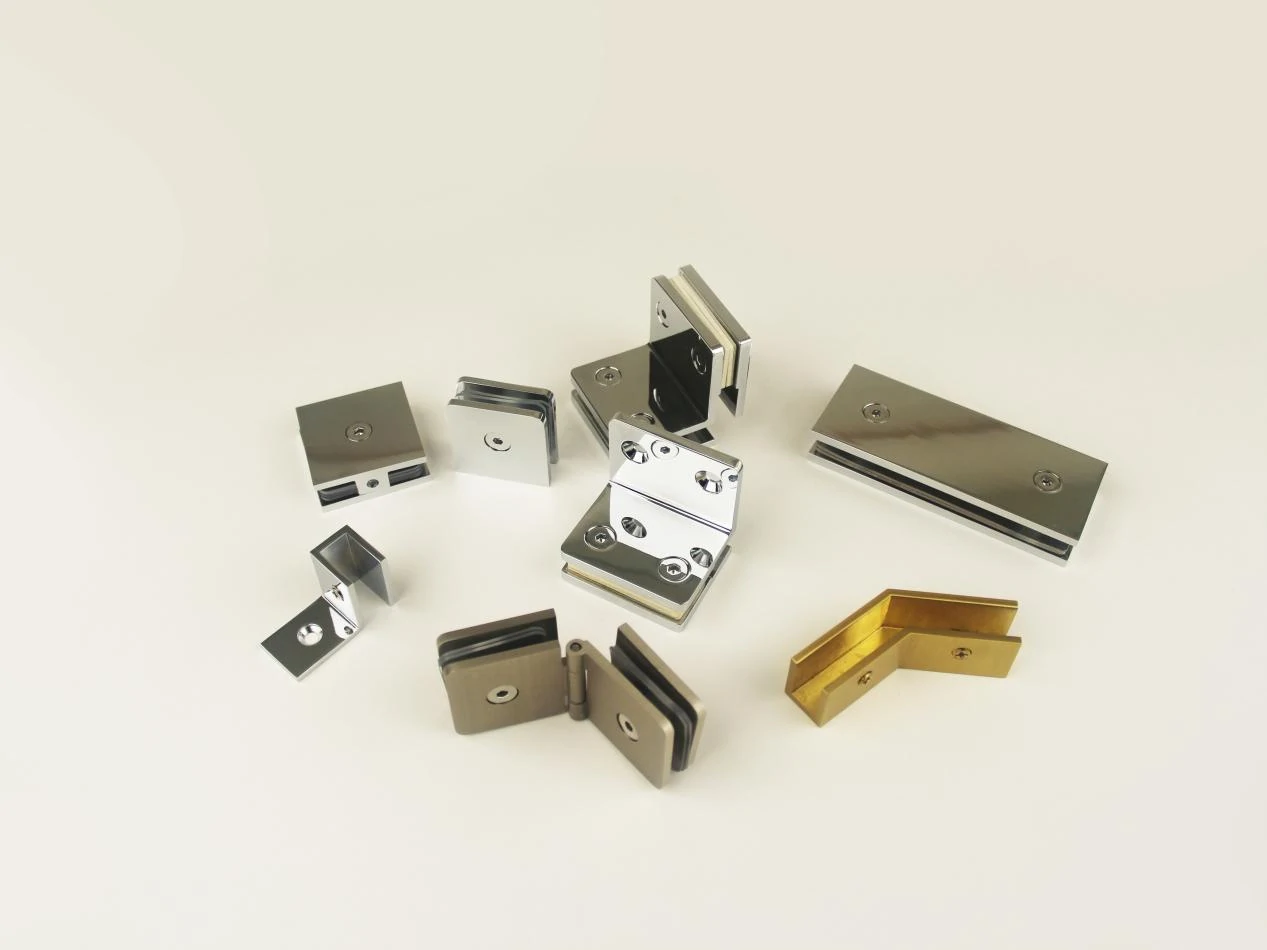

Aleader is a modern and professional manufacturer and exporter dedicated to research, development, production, sales and service of investment castings including construction hardware, auto parts, pump & valve parts, impellers, marine hardware, and some other machinery parts in materials of stainless steel, carbon steel, alloy steel, and brass, etc. We can supply castings in different conditions including heat-treated, precision-machined, and with some special surface treatments such as spray paint, electric or mirror-polish, satin, vibration grinding, galvanization, and nickel plating, etc. Our products are extensively used in the fields of construction industry, chemical machinery

ALEADER NEWS
Welcome to copy and open the link below, you will find our latest 360° VR certified by TUV,definitely an real experience...
Aleader dreams to be a leading foundry in China. Please watch our vedio on Youku carefully, then you will find that it i...
Aleader sales team attended online video training for 127th Canton Fair on the morning of May 15th and they mastered the skills to operate the platform and promote products soon.
Dear overseas buyers, exhibitors and relevant parties involved:The Ministry of Commerce of PRC has decided that the 127t...
ORGANISED FACTORY
ADVANCED QC EQUIPMENT
QUALIFICATIONS
Company Outdoor Scene
Company Philosophy
Canteen
Pattern Warehouse
Wax Injection Workshop
Wax Treatment Workshop
Wax Injection
Shell Slurry
Shell Coating Workshop
Dewaxing
Shell Sintering
Roasting
Prev 1 2 Next
Spectrometer
Handheld Spectrometer
Infrared Thermometer
Metallographic Analyzer
Profilometer
Measuring Projector
CMM
Hardness Tester
Tensile Testing Machine
Coating Thickness Gauge
Prev 1 Next
CASTING ABILITIES

Casting Process: Silica Sol Technics, Lost-wax Process

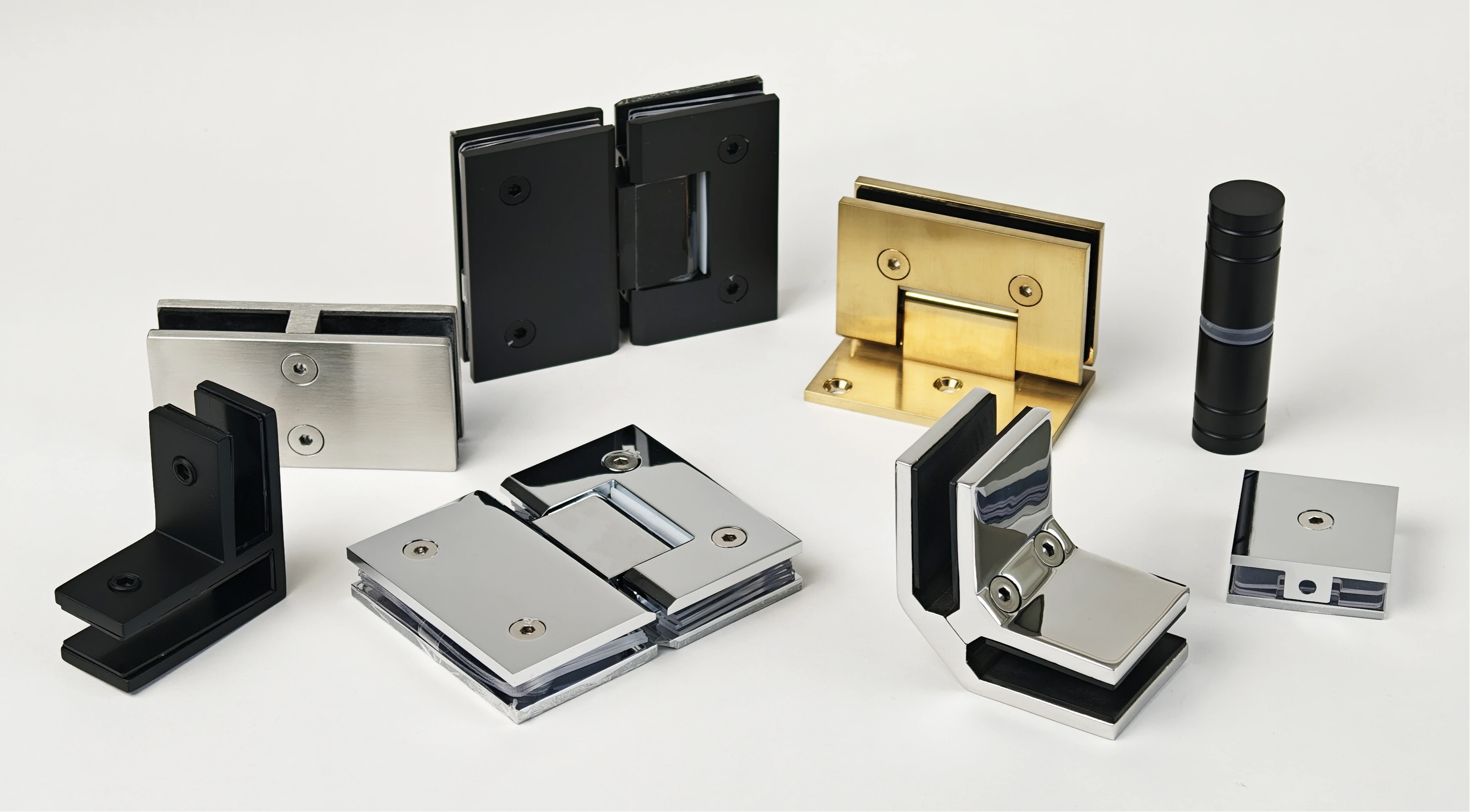

Main Products: construction hardware, auto parts, pump & valve parts, impellers, marine hardware, and some other machinery parts

Application Field: construction industry, chemical machinery, ship building equipment, medical industry, food machinery, and water & waste water treatment industries, etc.

Main Materials: stainless steel, carbon steel, alloy steel, and brass,etc.

Casting Weight range: 0.005kg-100kg



Typical Lead Time:

Tooling Lead Times 2 to 4 weeks

Less than 20 days for as Cast Parts

Average Lead Time less than 7 weeks

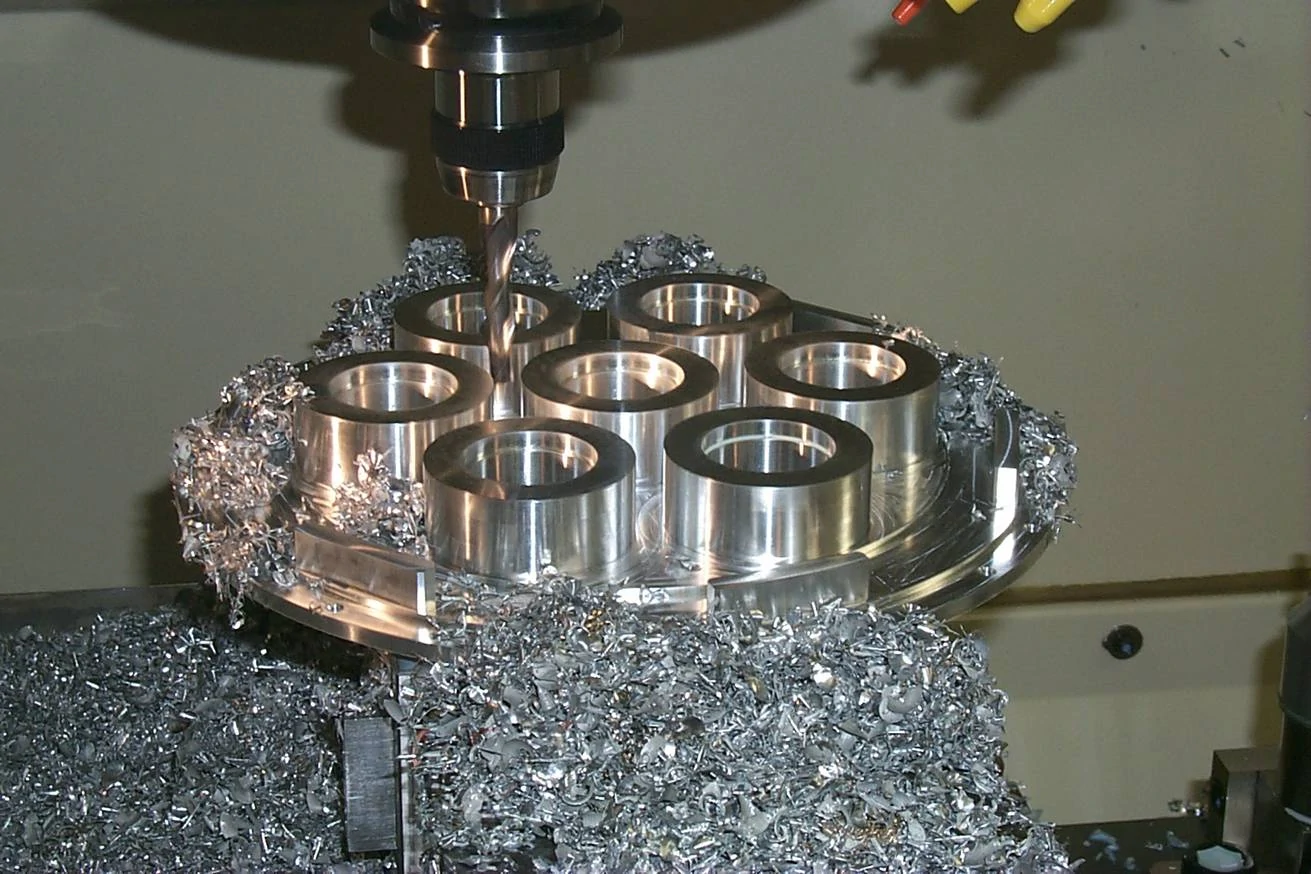

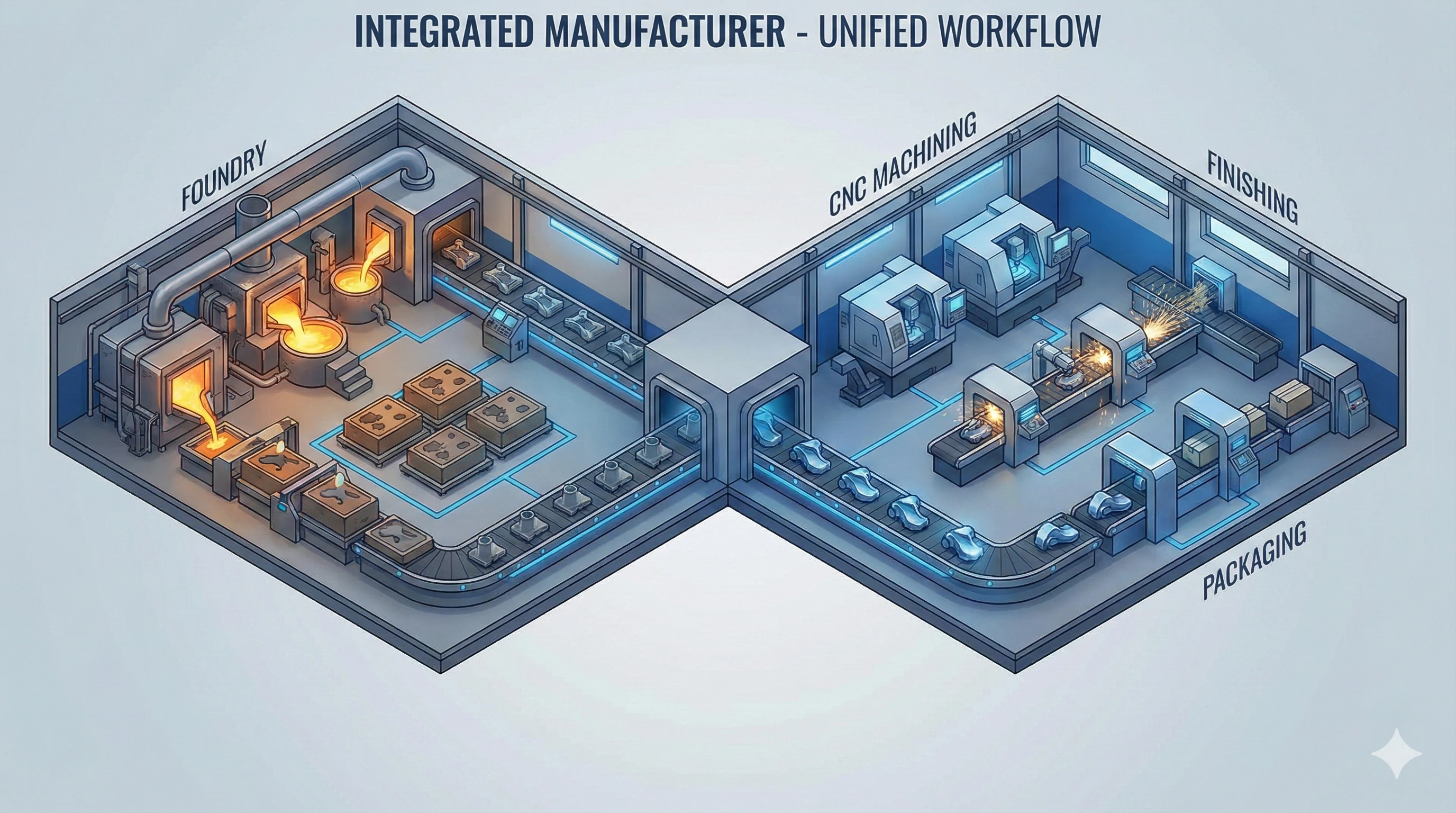

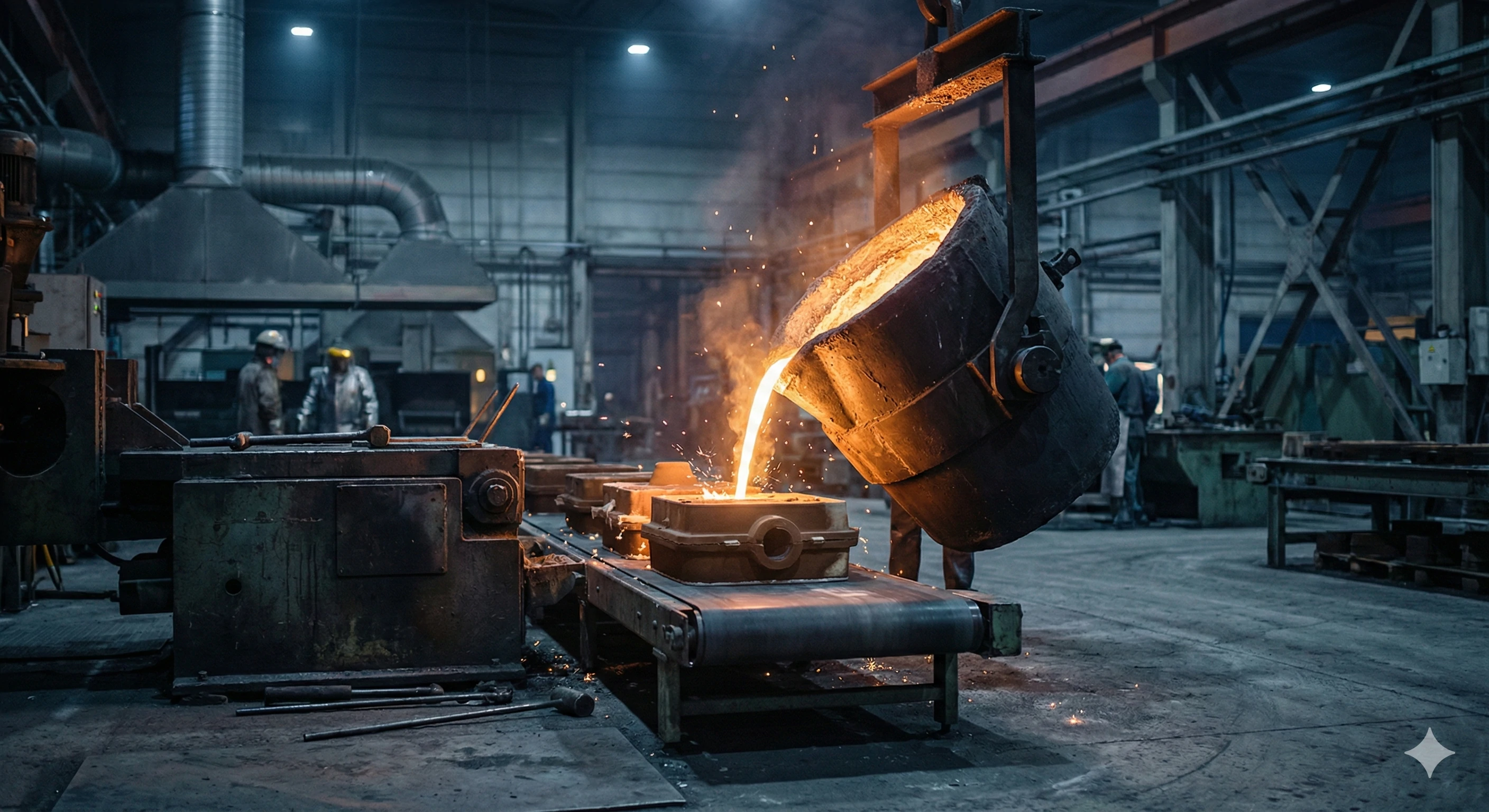

Operation Process: Tooling Making → Wax Injection ­→ WaxRepair → Wax Pattern Washing → Tree Assembly → Shell Coating → De-waxing → WaxTreatment → Shell Sintering → Pouring → Chemical Component Inspection → Shell Vibrating → Cleaning → Sand Removing → Gate Cutting & Grinding → Heat-treatment → Repair → Reshaping → Raw Casting Inspection → Passivating → Raw Casting Warehouse → Machining / Polishing →Surface Coating → Assembly → Finished Parts Inspection → Packing and shipping


TECHNICAL CAPABILITY

Max. Outline Dimension:

400mm x 500mm x 500mm, single dimension is no larger than 700mm


Min. Wall Thickness: 1mm


Min. Radius: R0.3


Min. Hole Size:

Min.through hole diameter: 2mm, Max. through hole depth: 4mm

Min.blind hole diameter: 2mm, Max. blind hole depth: 2mm


Casting Roughness: Ra3.2-6.3


Casting Tolerance:

Normally can achieve CT6, best to achieve CT4 as per standard GBT6414-2017


File Formats:

Auto CAD (DWG, DWZ)UGNXDXFIGESJPGPro-E (DRW, PRT, XPR)Solid Works (SLDPRT, SLDDRW, SLDDRT)STEP
