Glass to Wall Shower Door Hinges Description

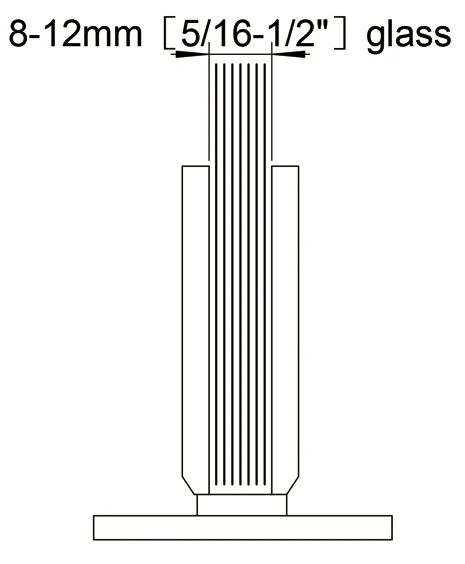

Shower Hinge Wall to Glass is used in shower enclosures to connect a glass shower door or panel to a wall, it is a specific type of hinge used in frameless shower door systems. These hinges are designed to allow the shower door or panel to pivot smoothly, enabling easy access to the shower enclosure. The glass shower door hinge is suitable for 5/16"(8mm)-1/2"(12mm) glass, and provide stability and support to the glass component.
This Shower Hinge Wall to Glass has a square-shaped base plate with screws that secure it to the wall, while the other side of the hinge attaches to the glass door or panel. They are made of High Quality Solid Brass for durability and corrosion resistance.
Glass to Wall Shower Door Hinges Specifications
|
Product Name |
Glass to Wall Shower Door Hinges |
|
Glass Thickness |
5/16"(8mm)-1/2"(12mm) |
|
Maximum Door Capacity/Door Weight |
Using 2 Hinges/36Kg(80LBS.) Using 3 Hinges/54Kg(120LBS.) |
|
Finish |
Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary) Anti-conductive Black/White Transparent Satin/Mirror |
|
Material |
High Quality Solid Brass |
|
Application |
Use in Residential Bath and Commercial Hotel Applications |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
When selecting a square high quality solid brass shower hinge wall to glass, it is important to consider the weight and thickness of the glass, as well as the specific dimensions and design of the shower enclosure. Square shower door hinges are available in various finishes to match your bathroom hardware.
